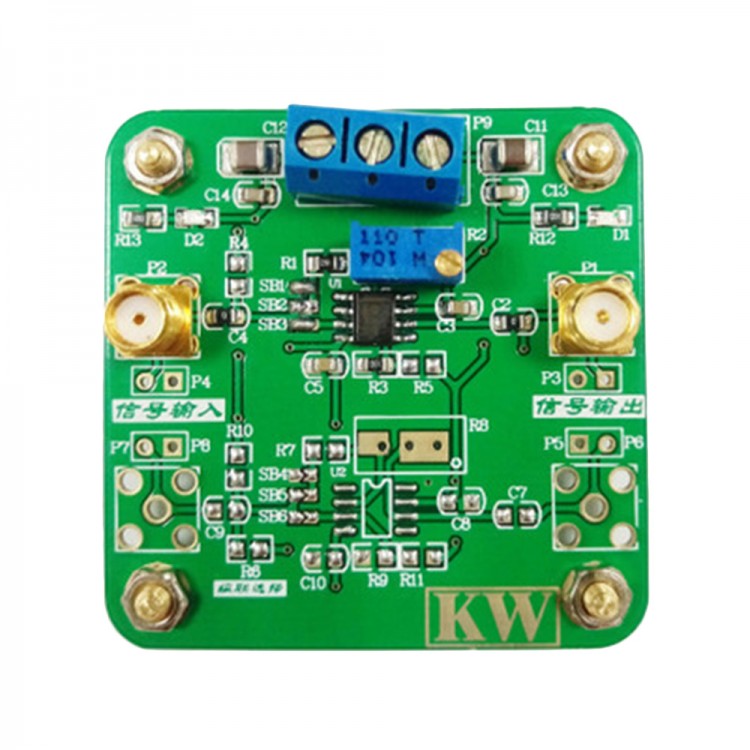

THS3091 Module High Frequency Operational Amplifier Dual Channel Same Reversed Phase AMP

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.56
  • Price in reward points: 216 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.13 $20.70 $20.05 $19.19 Contact US
Quantity:

THS3091 Module High Frequency Operational Amplifier Dual Channel Same Reversed Phase AMP

Specifications:

- Name: THS3091 Operational Amplifier
- Size: 50*50mm
- Power supply: -+5~-+15V

Features:
- Low distortion
- 77dBc HD2,when10MHz, RL=1KOhm
- 69dBc HD3,when10MHz, RL=1KOhm
- Low noise
- 14PA/ Hz same phase current noise
- 14PA/ Hz reversed phase current noise
- 2nV/ Hz voltage noise
- High conversion rate: 7300U/us (G=5 V0=20VPP)
- Bandwidth: 210MHz  (G=2, RL=100Ohm)
- High output current drive: -+250mA

Package List:
- 1 x THS3091 Module
