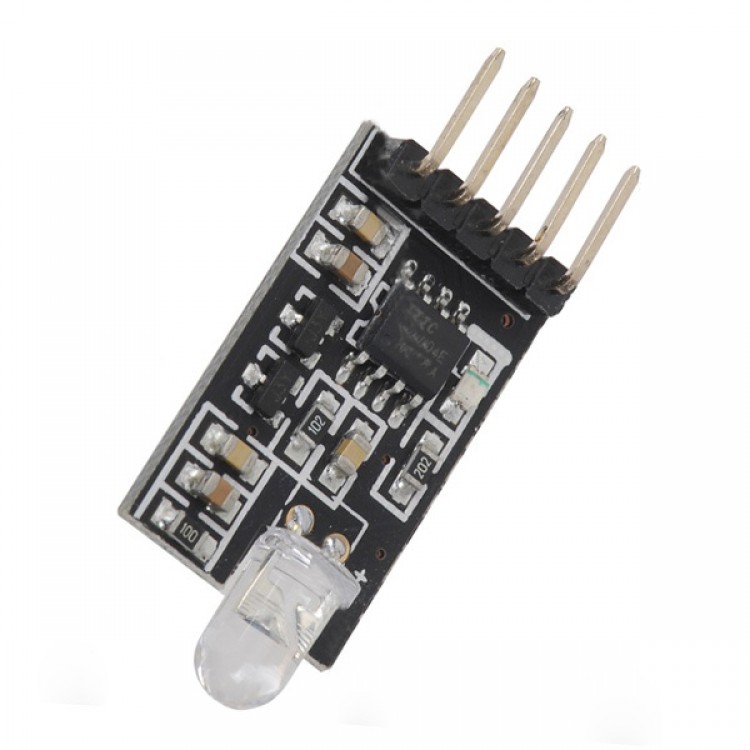

THXB FPV Camera IR Gimbal Remote Control Shutter for Sony/Canon/Nikon/Pentax Camera Aerial Photography
- Support Sony, Canon, Nikon, Pentax serial pocket cameras, ILDC, SLR cameras (Only Support Sony Camera Sku: 36914)
- Could switch shooting mode in air
- Change camera models through jumper.
- Infrared remote control
- Model selection method: use a jumper cap sub TX and RX port.
- Short answer the TX and RX first, and then to ensure normal power 5 v and GND port, blue state will keep flashing lights, on behalf of the system to work properly, and be no more.
- Extinguished, the LED will light up again, and then go out for 3 seconds, the representative pattern 1, if want to use the change pattern, should be in 3 seconds immediately pulled up jumper cap, the RX and TX disconnect, 3 seconds after the end of time, will Chang Liang lights, 1 function normal boot mode;
- If pattern 1 have no choice, after 3 seconds, will light up again, and then put out, at this time on behalf of the entry mode choice, 2 users also have 3 seconds of time to choose, method with mode 1.
- Model 3, 4, the above mode 5 selection method.
Note: model selection can be saved, and once again to electricity without jumper setting is used the last choice models
