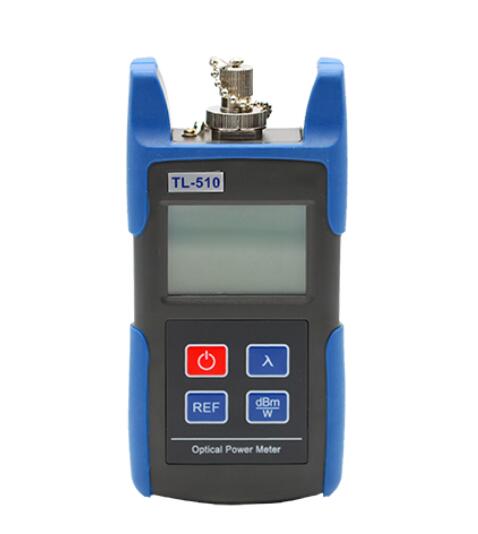

TL-510C Fiber Optical Power Meter FC SC Laser English -50~+10 dBm

Availability: In stock, usually dispatched in 1 business day

  • Price:$28.86
  • Price in reward points: 289 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $28.28 $27.71 $26.84 $25.69 Contact US
Quantity:

TL-510C Fiber Optical Power Meter FC SC Laser English -50~+10 dBm


Product Description:
- High sensitivity,small error,high backlight
- TL510C:-50~+26 dBm,suitable for radio and television and video monitoring area.
- TL510 optical power meter is designed for optical fiber network.
- Optional switch backlight display,Automatic shutdown function,super wide optical power range,high accuracy and user
- Auto-calibrating function,general interface design.

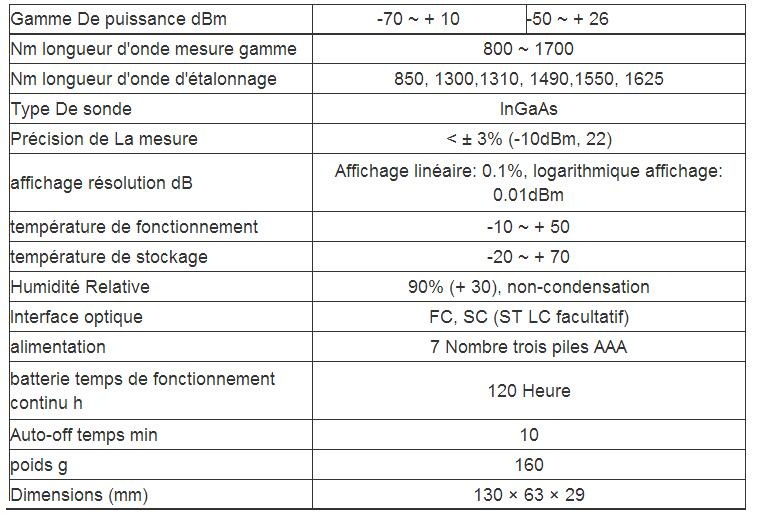

Parameter:
- Power testing range:-70~+10dBm;-50~+26dBm
- Wavelength testing range:800~1700 nm
- Calibrating wavelength:850,1300,1310,1490,1550,1625nm
- Probe type:InGaAs
- Testing accuracy:<+-3%(-10dBm,22℃)
- Display resolution:conventional display:0.1%;logarithmic display:0.01dB
- Working temperature:-10℃~+50℃
- Storage tempperature:-20℃~+70℃
- Relative humidity:90%(+30℃),none-condensable

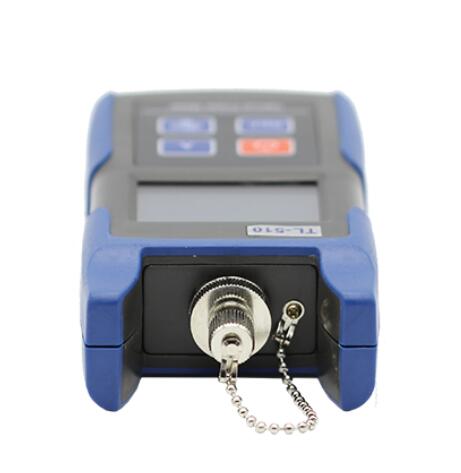

- Optical interface:FC,SC (ST LC optional)

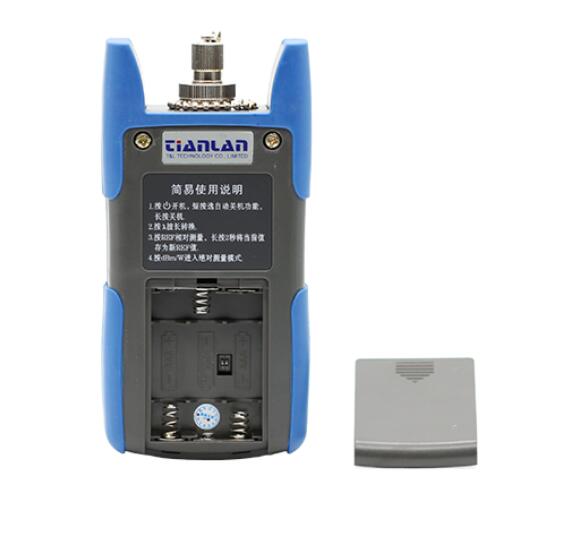

- Power:3PCS No.7 AAA battery
- Working time:120 hours
- Automatic shutdown time:10 minutes
- Weight:160g

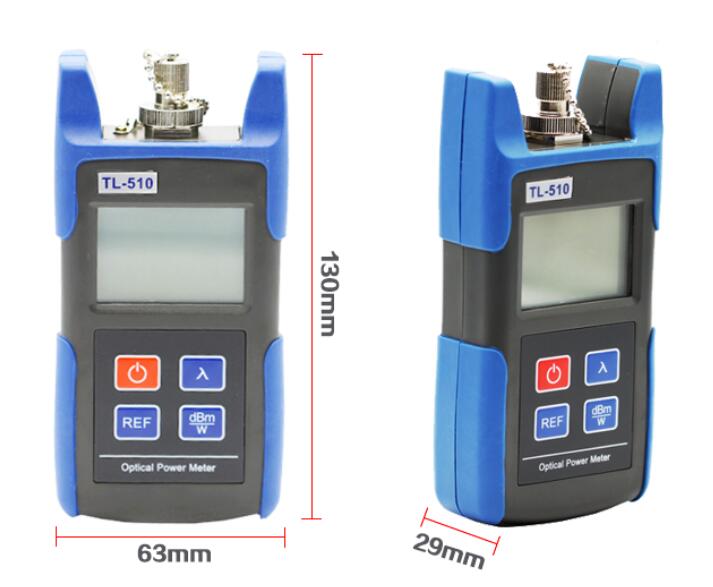

- Outline dimension:130x63x29mm

Application area:
- Optional CATV engineering
- Optional communication engineering
- Optional senor search
- Optical device manufacture and search
- Other optional engineering

Package List:
- 1 x  Main meter
- 1 x  Oxford fabric bag
- 1 x  FC round adapter
- 1 x  SC square adapter
- 1 x  Packaging box
- 1 x  Instruction
