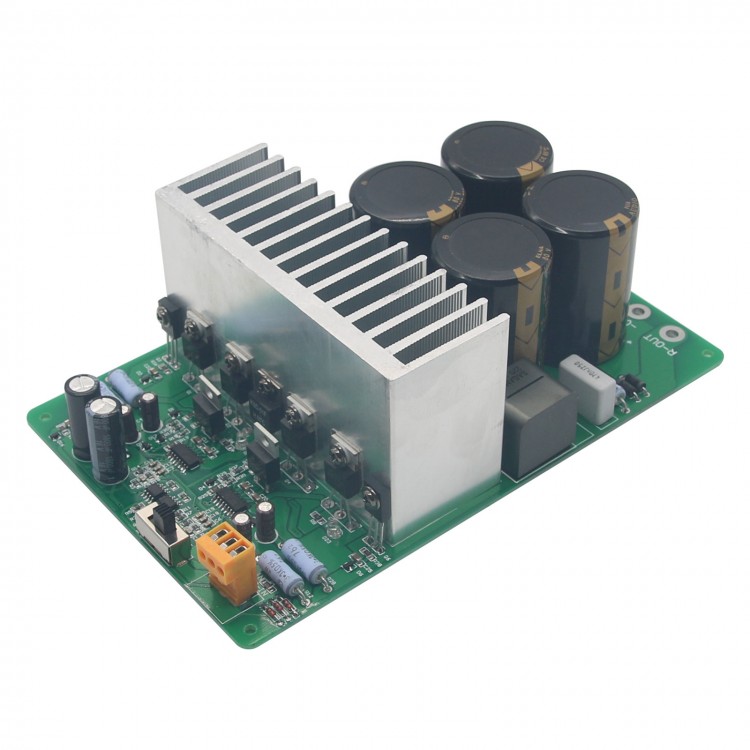

Top Iraud2000 Class D Amplifier Finished Board 2000W Irs2092s Digital Amplifier Board w/ ELNA 10000uF80V Capacitor

Availability: Out Of Stock

  • Price:$103.90
  • Price in reward points: 1039 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $101.82 $99.74 $96.63 $92.47 Contact US
Quantity:

Top Iraud2000 Class D Amplifier Finished Board 2000W Irs2092s Digital Amplifier Board w/ ELNA 10000uF80V Capacitor

This listing with 4 pcs ELNA 10000uF80V Capacitor

Specification:

- Class D Amplifier finished board
- IRAUD2000,IRAUD2000 IRFB4227 7G23A-22UH
- 184mmX117mmX70mm / block ( already with mounting studs )
- finished board one , to see is to get .
-  fever amplifier stage or KTV amplifier, home theater multi-channel amplifier, car amplifier and battery -powered high-power amplifier ( needed boost equipment )

[Note] 1 Amplifier with overcurrent and short circuit protection , thermal protection and over-voltage protection , safe and reliable ! To improve security, the proposed increase of share speaker protection circuit , just in case.
          2 high-voltage power amplifier operating in the state ( DC voltage > 60V), the inductor and the radiator will be slightly hot , if poor ventilation ( eg in a sealed box ) , should be added to enhance the cooling fan .
          3 If prolonged power output , rectifier bridge requires external heat sink , the other proposes to add auxiliary cooling fan .
          4 This amplifier is a dual -channel design , can be bridge .
          5 amplifier board if it is installed in the speaker , it should be as far away from the speaker , the best shielding .
          6 to DC power amplifier board , the board did not take the rectifier bridge, need additional rectifier bridge, and should be added to the rectifier bridge heatsink .

Specification:
- Voltage Range : ± 30V-80V, Note that the voltage in the DC 40V or less , R16, R22, R12, R28 instead 1.5KΩ/3W resistor.
- Maximum output power: ( DC ± 80V power supply maximum output power, distortion <0.1% )
- Dual -channel mode : 350W/8Ω X2
- 700W/4Ω X2
-  900W/2Ω X2 ( DC ± 62V power supply, auxiliary cooling fan is required )
   Bridge mode ( mono ) 1200W/8 2000W/4Ω
- Voltage Magnification: 33 times ( inverting amplifier )
- Input Sensitivity : 1.6V ( RMS )
- Input impedance : 6.1KΩ
- Frequency response :0-50KHz ± 1dB
- Residual noise voltage : 200uV
- Dynamic Range :> 100dB
- Overheat protection value : 75 ° C
- Protection value : ± 84V
- Distortion (THD + N):<0.1%(500W/4Ω)
