Topping D1-MARK2 USB Sound Card USB Coder PCM2704 CS4398 Decoder

Topping D1-MARK2 USB Sound Card USB Coder PCM2704 CS4398 Decoder



D1-MARK2 features:
1, the internal structure using IIS codec, USB interface, signal conversion, low-pass filter, and all done by an independent HIFI chip;
2, using the Texas Instruments TI's high-fidelity audio chip PCM2704 USB digital output, output a pure digital signal to the next level, greatly improving the signal to noise ratio and fidelity;
3, the top of Cirrus Logic CS4398 DAC decoder chip solution of the analog signal;

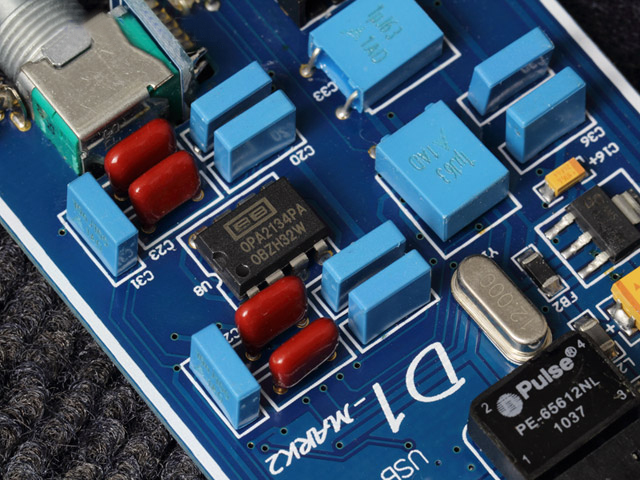

4, the output circuit uses a high-fidelity OPA2134 op-amp;
5, all-aluminum chassis, precision machining using CNC machining centers, slender, very portable;
6, even in limited space, is still widely recognized high-quality devices enthusiasts to create the best quality and performance, such as: Germany's Siemens capacitors, Japan Panasonic capacitors, Japan ALPS potentiometer ... ....



D1-MARK2 parameters:
- Dimensions (including protrusions): width 58mm * Thickness 13.6mm * 89mm deep
- Weight: about 80 grams
- Interface Type: USB1.1
- Sampling frequency: 44.1kHz, 48kHz
- Sampling depth: 16bit
- Distortion (Line out output): 0.0036%
- Distortion (amp output): 0.01% @ 100mW/32Ω
- Amp output power: 60mW @ 16Ω, 1% THD + N; 120mW @ 32Ω, 1% THD + N

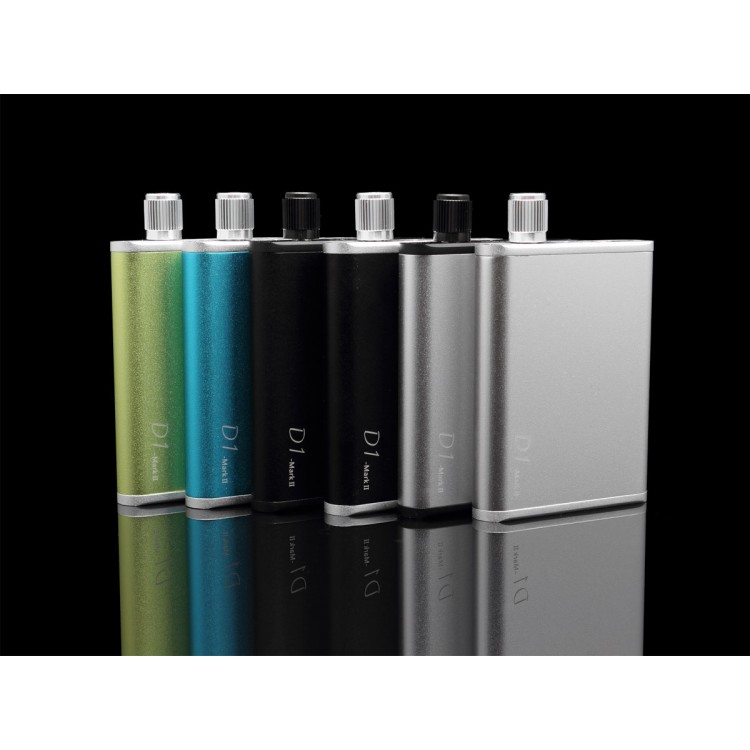

Please inform the color you need,or we will send randomly

Packing List:
- 1 * D1-MARK2
- 1 * USB cable
- 1 * User Manual
