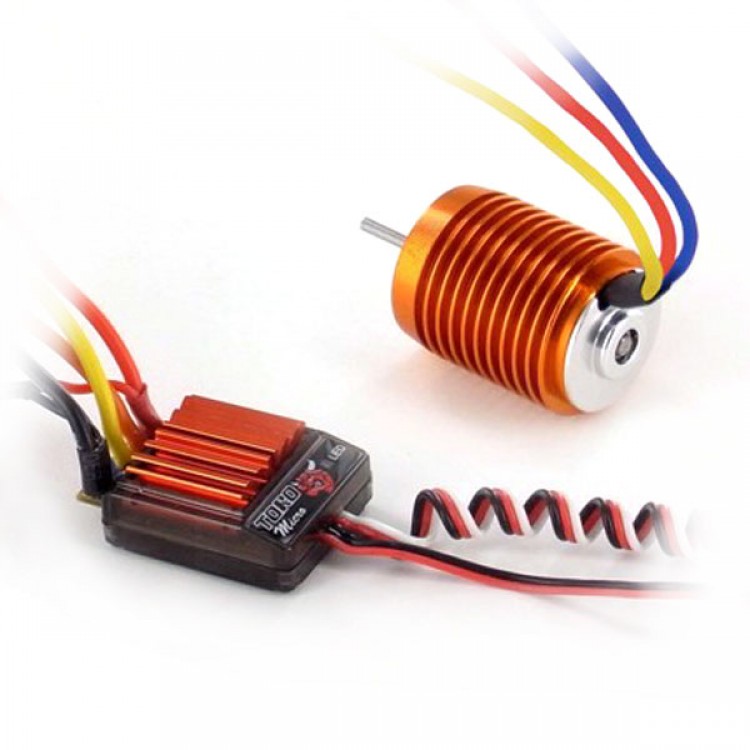

Toro Micro M25 25A ESC + Micro Toro 4300KV/14T/4P Brushless Motor Set for 1/18 Car
Specification:
ESC:
- Controls: Fwd/Brk or Fwd/Rev
- Input Power(cells):2-3SLipo,4-12NiCd/NiMH
- On Resistance,Brushless:0.002 Ohm Per Phase
- Continuous Currents;Brushless:25Amps/90Amp
- Linear BEC:5Volts,1Amp
- Status LED: 1with 3 color(Red,Green&Ornage)
- Dimensions:30*26.1*13.8mm
(1.18*1.03*0.54in)
- Weight(with wires):26g(0.92oz)
Brushless motor:
| Item Name | Micro Toro 4300KV/14T/4P BL Motor for 1/18 Car | ||
| Sensored /Sensorless | sensorless | No loading @7.2V Current | 1.8A |
| Turns | 14T | Max current | 30A |
| KV value | 4300KV | Resistance (Ω) | 0.037Ω |
| Poles | 4P | Battery range | <23v |
| Diameter | 21.5mm | Operation Temperature | 80° |
| Motor length | 37mm | Max Temperature | 130° |
| Extend shaft diameter | 2mm | Suitable car scale | 1/18 |
| Length of extend shaft | 11±0.5mm | Suitable ESC | 25A |
| Weight | 60g | Thickness of lamination | 0.2X20mm |
