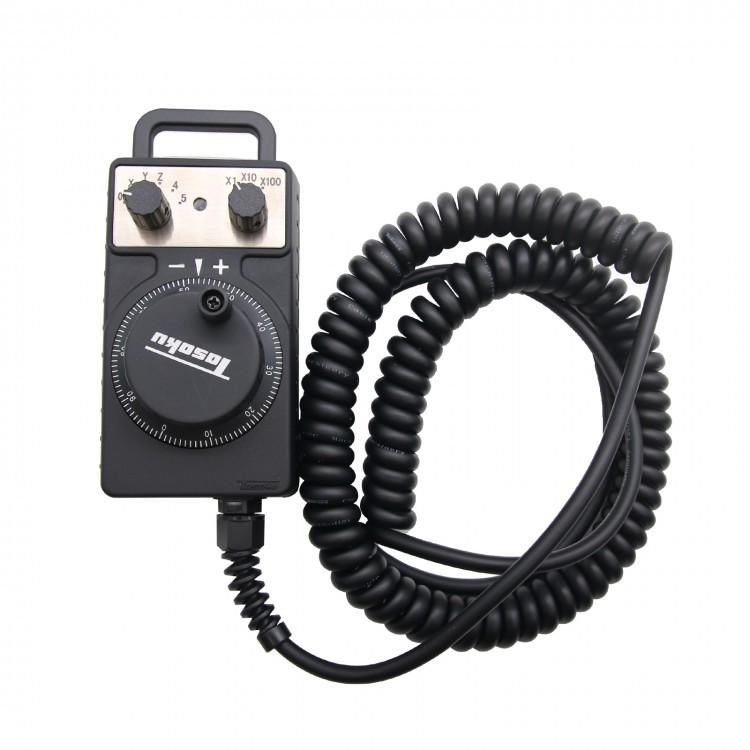

TOSOKU HC1 Series HC115 CNC Handwheel Handle Manual Pulse Generator for FANUC

Tags: HC115 Handwheel

Availability: In stock, usually dispatched in 1 business day

  • Price:$89.26
  • Price in reward points: 893 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $87.47 $85.69 $83.01 $79.44 Contact US
Quantity:

TOSOKU HC1 Series HC115 CNC Handwheel Handle Manual Pulse Generator for FANUC

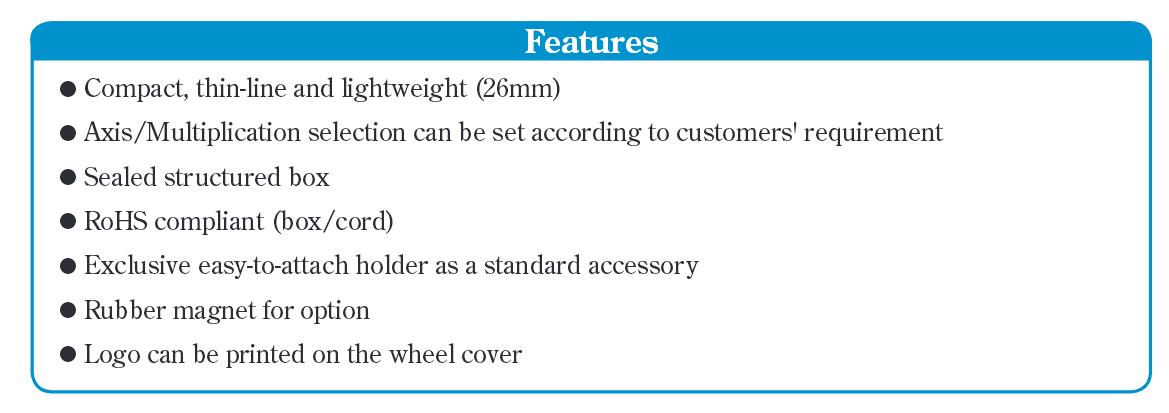

Descriptions:

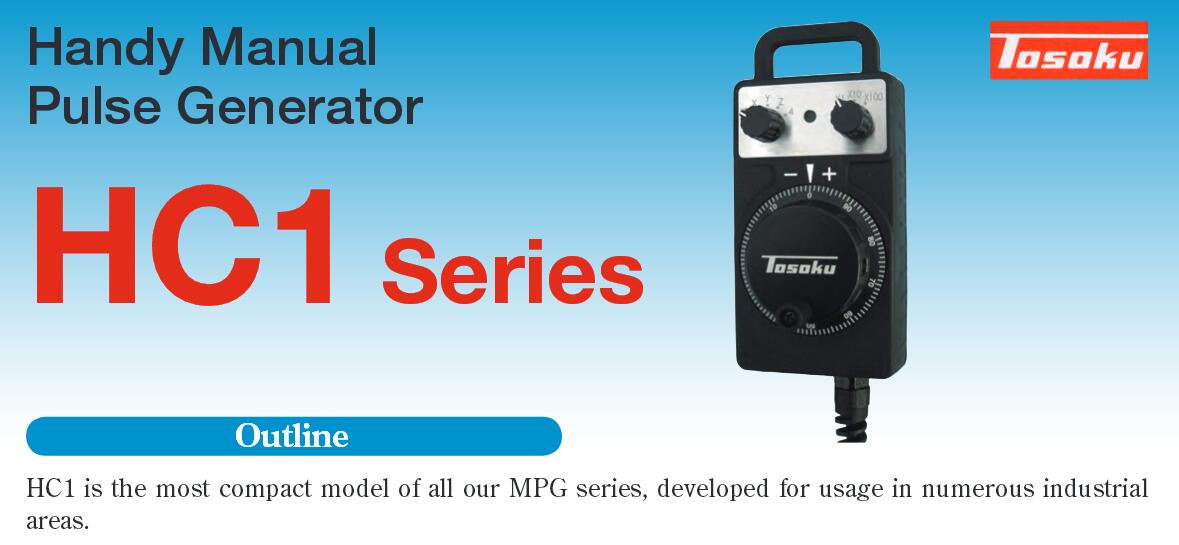

- HC1 is the most compact model of all our MPG series, developed for usage in numerous industrial areas.
- Compact, thin-line and lightweight (26mm)

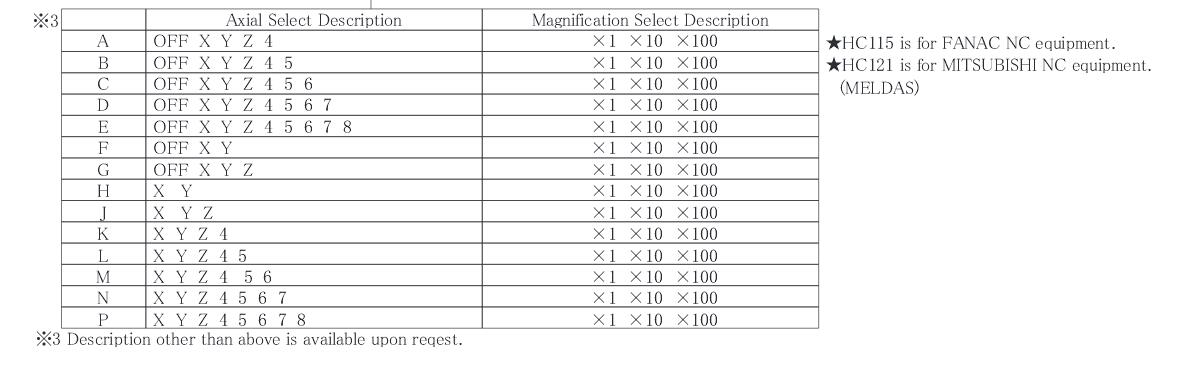

- Axis/Multiplication selection can be set according to customers' requirement
- Sealed structured box
- RoHS compliant (box/cord)
- Exclusive easy-to-attach holder as a standard accessory
- Rubber magnet for option

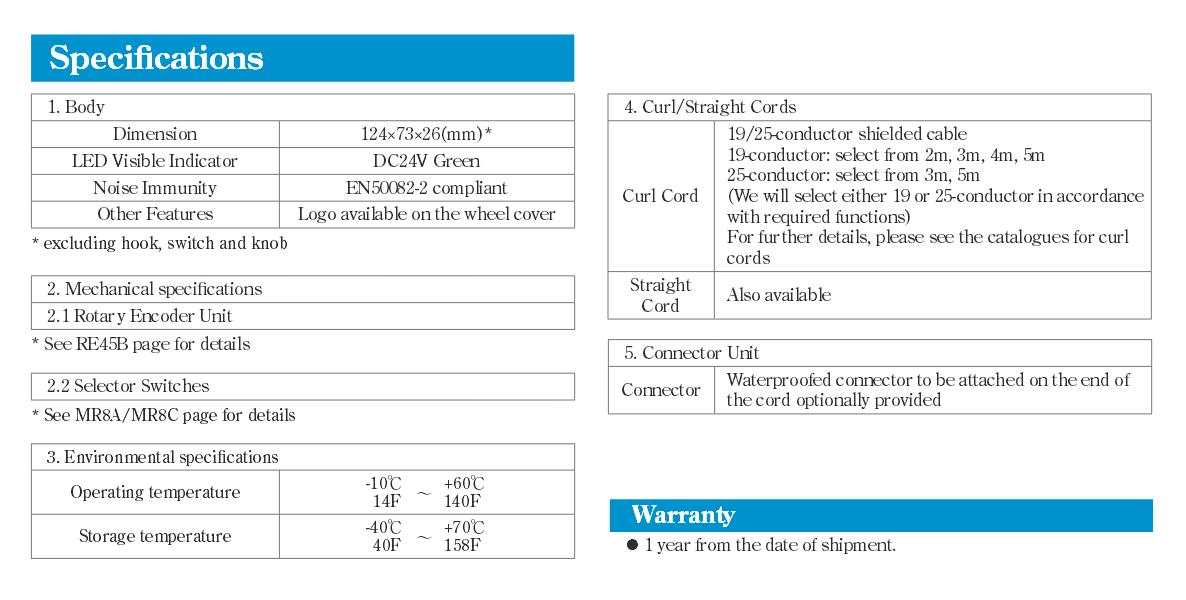

Body:

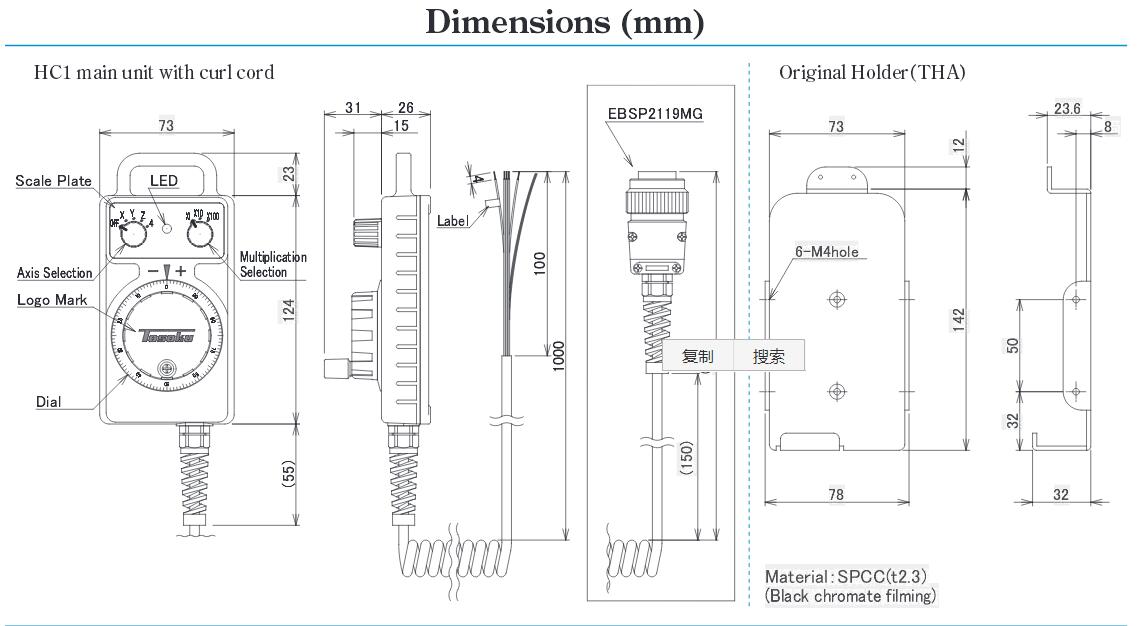

- Dimension :124×73×26(mm)*
- LED Visible Indicator: DC24V Green
- Noise Immunity EN50082-2 compliant

Curl Cord:
- 19/25-conductor shielded cable
- 19-conductor: select from 2m, 3m, 4m, 5m
- 25-conductor: select from 3m, 5m
- (We will select either 19 or 25-conductor in accordance with required functions)
- For further details, please see the catalogues for curl cords

Specifications:
- for FANUC and other system
- Model:HC115
- Voltage: DC5V
- Output resolution100
- A,B Phase output

User Manual Download link:http://www.tosoku-inc.co.jp/en/product/pdf/h-pulse/hc1.pdf
