• TPA3116 4.1 Bluetooth Amplifier Board 4.0 4X3300UF Dustproof

TPA3116 4.1 Bluetooth Amplifier Board 4.0 4X3300UF Dustproof

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.93
  • Price in reward points: 329 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.27 $31.61 $30.62 $29.31 Contact US
Quantity:

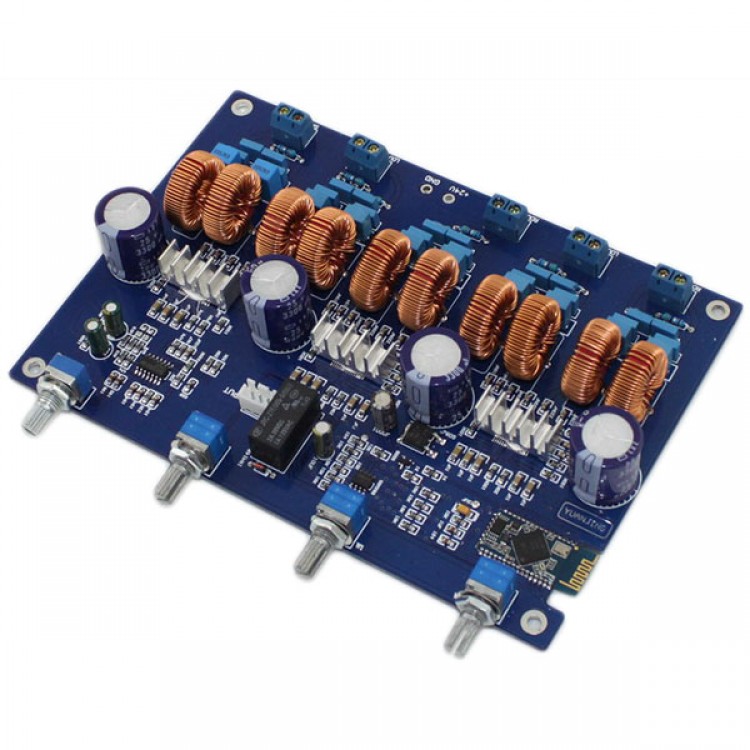

TPA3116 4.1 Bluetooth Amplifier Board 4.0 4X3300UF Dustproof

Description:

- Adopting original TPA3116
- Main filter capacitor adopts Japanese capaciotr 4X3300UF
- Five loop metal resistor, mainloop adopts ±1% SMT resistor
- 1.6mm thick board, 2.0 oz copper thickness, full tin plated
- Full sealed dustproof potentiometer, better performance,more durable
- Adopts red grey ring large current inductance
- Hongfa relay as switch signal components
- Same way to connect bluetooth as other devices
- Two input modes: Bluetooth and analog input

Parameters:
- Operating mode: D type
- Static current: 80mA
- Working frequency: 90%
- Rated output power: 4*50W+100W
- Frequency response: 20Hz---20KHz
- Operating voltage: DC18V---DC24V
- Max output current: 2A
- PCB size: 166*166mm

Potentiometer functions:
From left to right:
low pitch volume, left right channel high pitch, 1.2 left right channel volume, 3.4 left right channel volume
2.0 signal input 4.1 power output
