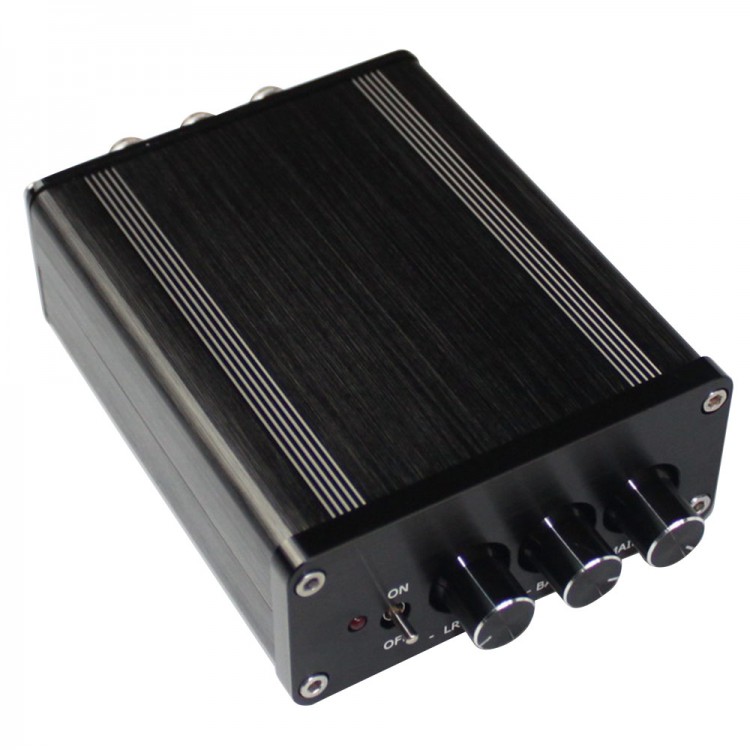

TPA3116+LM1036 Class D DC18V-24V 50mA 2x50W Tone Digital Amplifier for Audio
Specification:
- Adopt TPA3116 LM1036
- Main filter capacitor adopts 3300UF/25V, and Panasonic electrolytic capacitor
- Electrolytic capacitor signal usin gfamous brand,main filter capacitor using Japanese Nikon electrolytic capacitors
- The main circuit adopts 1% ring metal film resistors
- 1.6MM PCB, copper thickness is 2ounce
- Special power amplifier inductance of red ash ring
Parameters:
- Working: Class D
- Static current: 50mA
- Work efficiency: 90%
- Rated output power: 2*50W
- Frequency response: 20Hz to 20KHz
- Working voltage: DC18V to DC24V
- Maximum output current: 3A
- PCB size: 100*83MM
- Size: Depth 108* Width 90* Hight 39MM
Package List:
- 1 x Digital Amplifier
