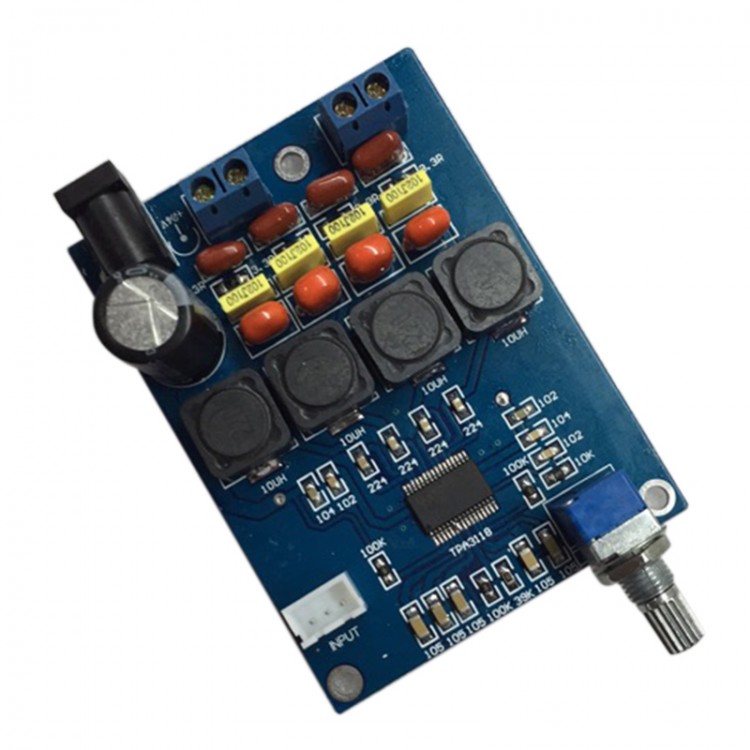

TPA3118 DC18V-24V Class D Digital Amplify Board Amplifier Module 35W+35W for Audio DIY
Features:
- Original TPA3118
- Electrolysis capacitor adopts famous brand, main filter capacitor adopts NOVER audio professional capacity 1000UF
- Five rin gmetal film resistor
- PCB adopts 1.6mm thick two sides board
- Fully enclosed dust potentiometer
- Full shield big current 127 type inductance
Specification:
- Working method: D class
- Static current: 50mA
- Working efficiency: 90%
- Nominal output power" 2*35W
- Frequency respond: 20Hz ~ 20KHz
- Working voltage: DC 18~24V Recommand DC24V
- Max output power: 1.5A
- PCB size: 78*58mm 25mm height
Package included:
- 1* TPA3118 digital amplify board
