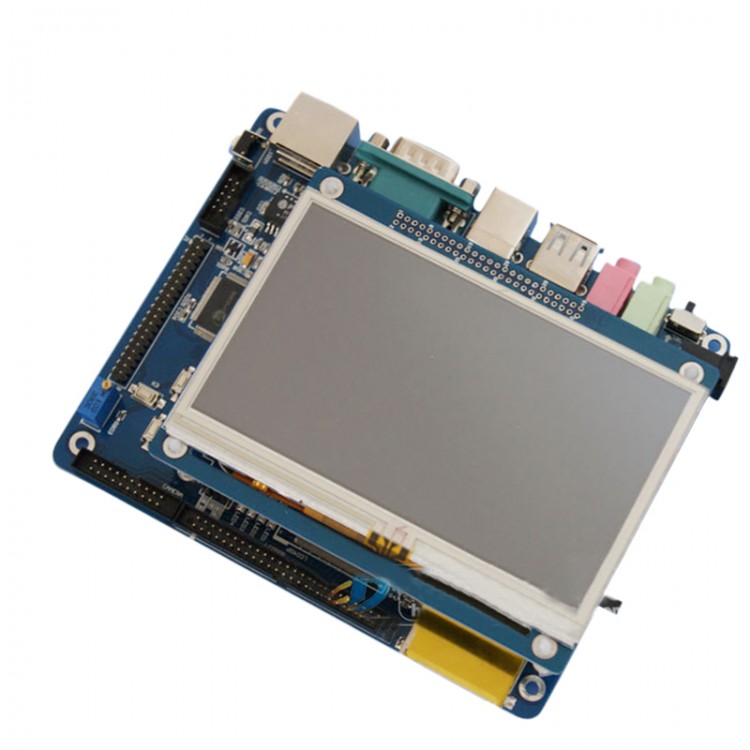

Tq2440 arm9 Development Board S3c2440 Development Module +4.3inch Touch Screen U to Series

Tq2440 arm9 Development Board S3c2440 Development Module +4.3inch Touch Screen U to Series

Description:
TQ2440 supports Wince6.0 (R3) system

TQ2440 matching WinCE 6.0 contains the following features:
- Support the boot logo full screen;
- Support the latest patches for WinCE6.0 R3, support mobile version QQ;
- Support the installer stores permanently, the installation program process is similar with that of Windows XP;
- BSP package already contains the most perfect driving open source (100%), including:
- PWM - is used to control the buzzer
- IIC - can work control block of the IIC interface EEPROM or other IIC bus
- Camera - support OV9650 camera, 130 w pixels, day embedded source test program.
- External interrupt control - support four user keys
- GPIO port control, can control four users LED and off
- RTC - with backup battery can save the current time
- LCD - from 240 to 320 x 240 x 240 resolution, support rotating LCD, support 3.5, 4.3, 5.0, 7.0, 10.4, etc all kinds of size of the LCD screen
- Touch screen - with unique hardware filter circuit, handwriting input without shaking
- Network - DM9000, 100 MHZ network
- U disk, support electric automatic identification the U disk, hot plug
- USB keyboard - support hot plug
- USB mouse - support hot plug
- card - the biggest support 32 gb capacity, support SDHC CARDS at a high speed
- Sound card, support playback and recording
- 3 a serial port - S3C2440 bring 3 a serial port can be used as ordinary serial port
- 100% source development of the application (only), including:
- Buzzer test program
- Camera test program
- The LED test program
- A serial port test program
- *LCD rotation program

Development board CD data:
1, compiled Wince, Linux image file,
2, burning SJF2440 tool software, H - the JTAG, etc
3, Windows tool software such as ActiveSync, DNW, etc.
4, USB Device driver;
5, the BOOTLOADER (uboot) source code;
6, no OS test program source code, and mirror;
7, there the kernel for S3C2440 kernel source code package and compile tools;
8, Windows CE 4.2 and 4.2 for S3c2440 BSP package as well as the Platform Build integrated development tools.
9, from official development of reference data
10, development board schematic circuit diagram (PDF, core board floor PROTEL)
Page 11, the detailed user manual (XXX);
12, main chip manuals and data;

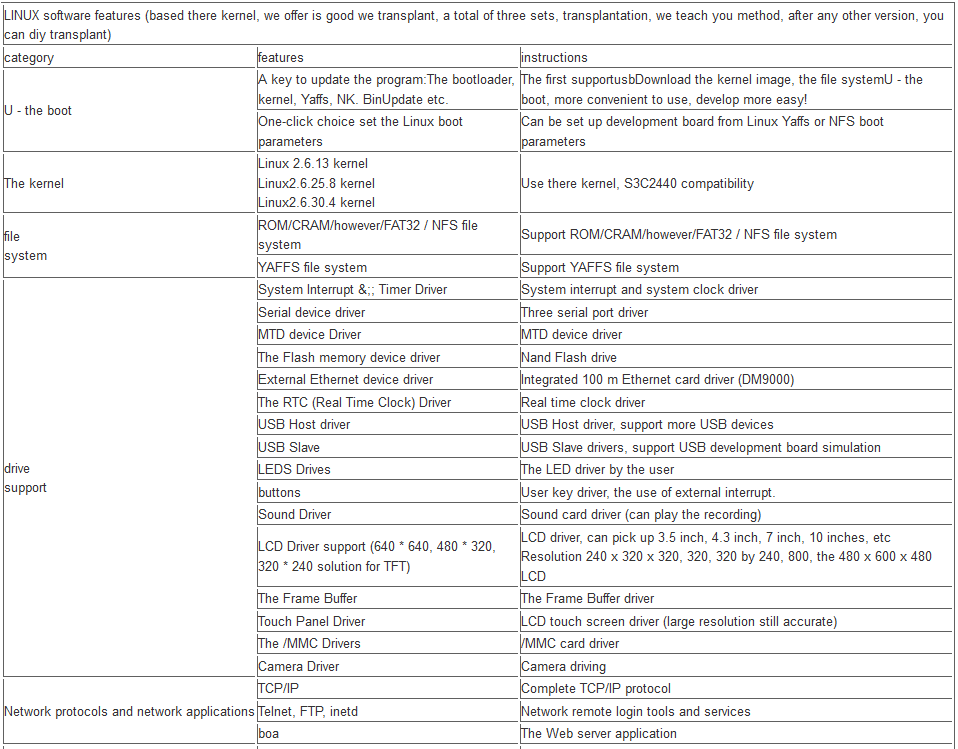

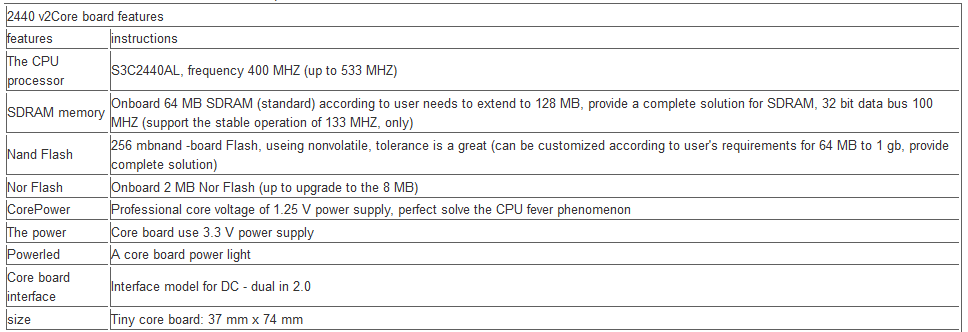

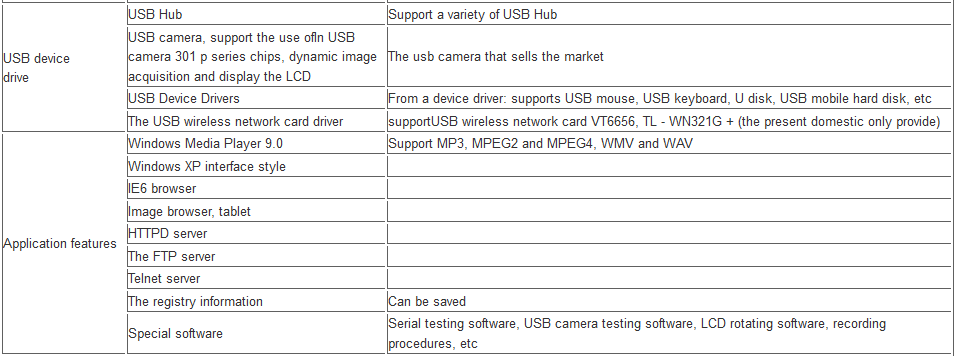

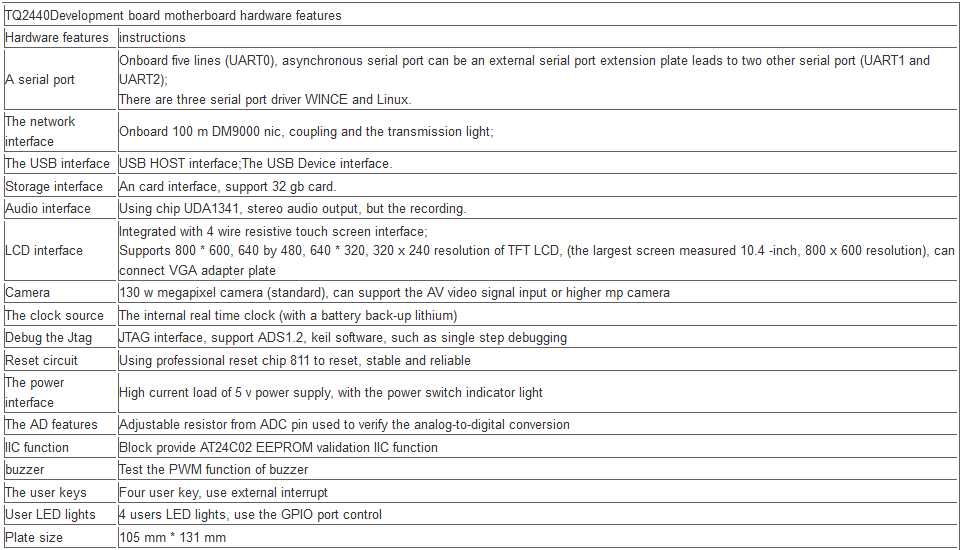

TQ2440 have V2 core board and TQ2440 base plate.


Development board tutorial(the user manual is quite rich in detail)

1, TQ2440 download manual (page 289)
2, TQ2440 linux2.6.25 transplantation manual (page 228)
3, TQ2440 QT application completely transplantation manual (page 152)
4, TQ2440 wince development completely manual (page 204)
5, TQ2440 ADS AXD debugging handbook
6, TQ2440 SKY2440 Jlink burning debugging handbook
7, Linux GDB debugging TQ2440 SKY2440 manual
8, WinCE5.0 boot LOGO production manual
9, WinCE5.0 LCD driver transplantation manual
10, LINUX WEB server transplantation manual
11, LINUX wifi application manual

Official offer 46 classic experiment(practice is embedded in the best way to learn)
Linux experiment
1, termination procedure of experimental operation
2, set auto boot operation experiment
3, set up and maintenance of system real time clock testing
4, test the USB mobile storage equipment experiment
5, test experimental card
6, mounted using a network file system experiment
7, test the USB camera acquisition experiment
8, test sound experiment
9, testing a serial port and PC implementation file each experiment
10, screen acquisition experiment
11, the user LED test experiment
12, the user keyboard test experiment
13, Telnet login BBS experiment
14, Telnet, remote login experimental development board
15, FTP remote transmit documents experiment
16, Web server test experiment
17 USB camera, network remote control experiment
18, network users the remote control of the LED test

WinCE experiment
1, test the USB mobile storage equipment experiment
2, test experimental card
3, save the data to the Flash no lose when power supply drop experiment
4, using players experiment
5, 100 MB card test experiment
6, Telnet, remote login experimental development board
7, FTP remote transmission file experiment
8, Web server test experiment
9, touch screen calibration experiment
10, USB camera test experiment
11, LCD display image rotation experiment
12, 3 serial port test experiment
13, the tape test experiment
14, IE experiment the Internet
15, USB sync ActiveSync trial
16 and WinCE bring game testing experiment
17, Mr Zuma game testing experiment

Without the operating system routines (ADS debugging, researchers the ARM (especially)
1, the PWM function test
2, real time clock testing experiment
3, the ADC conversion test experiment
4, external interrupt testing experiment
5, touch screen test
6, the LCD panel testing experiment
7, IIC interface test experiment
8, sound card, the audio output of the experiment
9, sound card, audio input experiment
10, card test experiment
11, Camera experiment


Package included:
- 1 x Development Board
