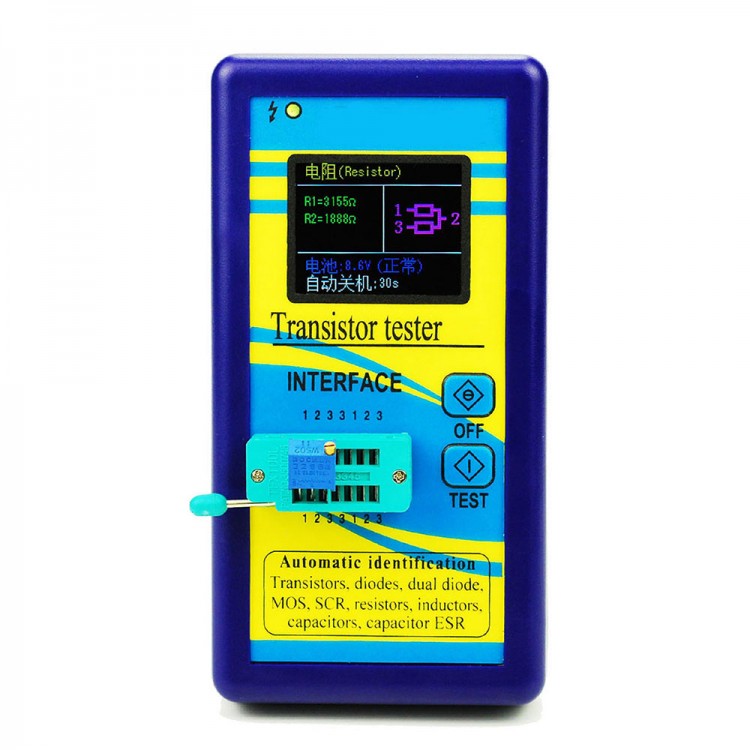

Transistor Tester M328 TFT Diode Triode Capacitance Meter LCR ESR NPN PNP MOSFET

Transistor Tester M328 TFT Diode Triode Capacitance Meter LCR ESR NPN PNP MOSFET

Specifications:
- One -button operation, automatic shutdown .
- Only 20nA shutdown current.
- Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor.
- Automatic identification components pin arrangement .
- Measuring bipolar transistor current amplification factor and base - emitter threshold voltage.
- Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
- Can detect bipolar transistors and MOS transistors protection diodes.
- Measuring the gate MOS FET threshold voltage and the gate capacitance.
- Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4 . Resistance symbol on both sides shows the pin number. So you can measure the potentiometer. If the potentiometer wiper is not transferred to an extreme position , we can distinguish the middle and both ends of the pin.
- Resistance measurement resolution is 0.1 ohms , 50M ohms can be measured .
- Can measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF.
- 2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. The two can be displayed with a decimal value , resolution 0.01 ohms.
- Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage.
- LED is detected as a diode forward voltage higher . Combo of the LED is identified as two diodes.
- Eeverse breakdown voltage is less than 4.5V Zener diode can be identified.
- Can measure a single diode reverse capacitance. If the bipolar transistor connected to the base and collector or emitter of a pin , it can measure the collector or emitter junction reverse capacitance .
- can be obtained with a single measurement rectifier bridge connection.

Note: Before measuring capacitance , the capacitor must be discharged , otherwise very likely damage the meter

Specifications:
- 1.8 inch TFT LCD display 128*160
- Dimensions: 70mm * 135mm * 24mm
- Power: DC9V (9V battery 6F22)
- Weight: 0.128kg (without battery)
- Language: Chinese/ English

NEW Function:
- Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components
- Automatic test the pin of a component, and display on the LCD
- Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage
- Measure the gate and gate capacitance of the MOSFET threshold voltage

Automatic identification devices.
Automatically determine the pin.
Automatic measurement parameters.

TIPS: Please choose express delivery because the product includes battery.

Package included:
- 1x Transistor Tester TFT Diode Triode Capacitance Meter LCR ESR NPN PNP MOSFET
- 1 x IC element
- 1 x Patch element (need welded yourself)
- 1 x 9V battery
