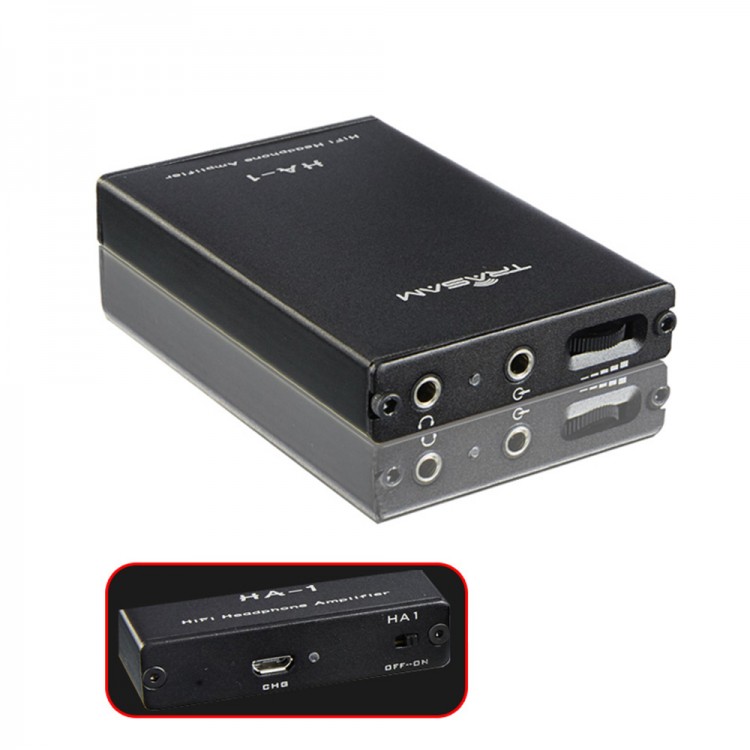

Trasam HA1 HIFI Headphone Amplifier Decoder OPA2134PA Audio AMP Standard Version

Availability: In stock, usually dispatched in 1 business day

  • Price:$36.77
  • Price in reward points: 368 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $36.03 $35.30 $34.20 $32.73 Contact US
Quantity:

Trasam HA1 HIFI Headphone Amplifier Decoder OPA2134PA Audio AMP Standard Version

Parameters:

- Frequency range: 10Hz-50KHz (0-6db)
- Harmonic distortion: <=0.002% (1mW,32Ohm)
- SNR: 98dB
- Battery capacity: 2000mAH
- Dimension: 88*60*14 mm (L*W*H)
- N.W: 0.10kg
- Output power: 100mW (8-100Ohm)
- Class A and B mode: 250mW (8-100Ohm)
- Maximum impedance support: Headphone,<200Ohm

Specifications:
- Model: HA1 standard version
- Voltage: -+4V
- When 16Ohm ,100mW
- Recommend headphone impedance: 8-120Ohm
- OP AMP chip: OPA2134PA
- OP AMP can be changed
- Endurance: 15h

Features:
- Japan Panasonic 220uF hifi filter capacitor
- Taiwan Suyin headphone plug
- Japanese Imperial potentiometer
- Gold-plated headphone socket

Package List:
- 1 x HIFI Headphone Amplifier
