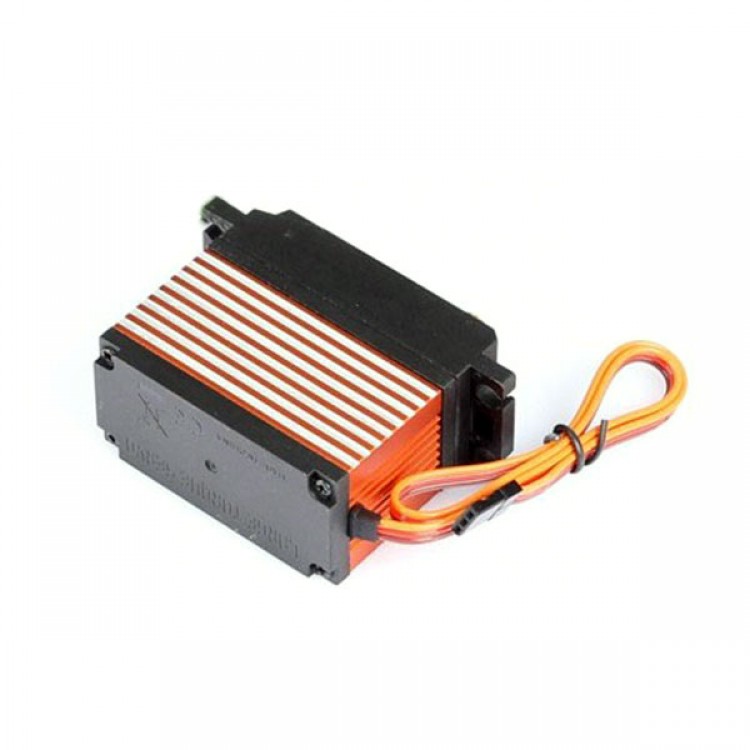

• TRS-380 Super Large Torque Alloy Servo 24V 380kg.cm for Large Robot Mechanical Arm

TRS-380 Super Large Torque Alloy Servo 24V 380kg.cm for Large Robot Mechanical Arm

Availability: In stock, usually dispatched in 1 business day

  • Price:$75.40
  • Price in reward points: 754 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $73.89 $72.38 $70.12 $67.11 Contact US
Quantity:

TRS-380 Super Large Torque Alloy Servo 24V 380kg.cm for Large Robot Mechanical Arm

Description:

- Compatible with Futaba, JR, SANWA, Hitec remote control system
- Unique power stabilization technology, enabling servo works in safe torque

Features:
- Compatible with servo PWM control signal (compatible with Futaba, JR, SANWA,Hitec servo)
- Serial port communication, directly use PC control servo
- Support potentiometer directly controlling
- Large range, can position 0-350 degree, control at any angle
- Can set sservo zero point (for servo caliberation)
- Support 12-24V wide voltage power supply

Parameters:
- Operating voltage: 12-24V
- No load current: <1A
- Max torque: 380kg.cm (24V), 3650N.cm(24V), 190kg.cm(12V), 1850N.cm (12V)
- Angular speed: 0.5s/60° (0.5s for 60 degrees), 24V.   1.0s/60° (1.0s for 60 degree), 12V
- Rotating angle: max range 350 degree
- Input mode: impulse signal (remote controller, multichannel servo controller, singlechip machine) or analog voltage signal (potentiometer) or TTL serial port control
- Impulse signal input range: 0.5ms-2.5ms suitable for all multi channels servo controller, 1ms-2ms remote controller, singlechip programme, Arduino
- Voltage signal input range: 0-5V
- Controlling precision: 0.3 degree
- Weight: 530g
- Material: steel
- Size: 95.5*60.5*102.6mm
