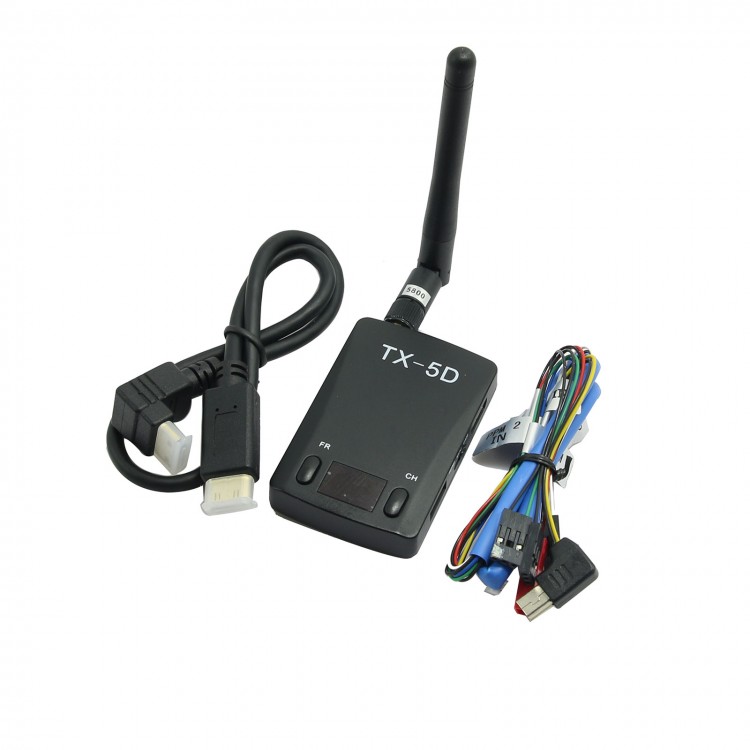

TX-5D 5.8G 600mW 32 Channel HDMI to AV Transmitter Module
Features:
- When turning the video input switch to HDMI, the module is in HDMI input function. User can connect the module to HDMI output device, and turn the HDMI signal into CVBS signal.
- When turning the video input switch to CAM, the module is in CVBS input function. User can send out the CVBS signal from camera directly.
- When turning the video input switch to MCU, the module is in HDMI & CVBS input at same time function.The default is HDMI input. User can select signal input by radio transmitter through PPM wire.
- User can select different output channels by radio transmitter through PPM wire.
- When using the module with RC800, user can connect RC800 with radio transmitter to adjust sync channel.
Specificatons:
- Transmitting unit weight: 28g
- Video format supported: NTSC/PAL
- Working frequency: 5645-5945Mhz
- Power input: 7-24V
- Transmitting current: 250mA
- Video band width: 8MHz
- Audio coding: 6.5MHz
- Dimension: 54*32*26.5mm
Package content:
- 1 x transmitting unit
- 1 x TX antenna
- 1 x special wire
