TZTPIX Pixhawk Fligtht Controller 32Bit + M8N GPA +SD 4G Card + GPS Bracket for FPV Quadopter Drone

Availability: In stock, usually dispatched in 1 business day

  • Price:$90.15
  • Price in reward points: 902 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $88.35 $86.54 $83.84 $80.23 Contact US
Quantity:

TZTPIX Pixhawk Fligtht Controller 32Bit + M8N GPS +SD 4G Card + GPS Bracket for FPV Quadopter Drone

Fligtht Controller Improvements on V2.4.3
- V2.4.6 PCB board
- Redeveloped and optimized circuit without changing components
- Could use Official MissionPlanner, ECLIPSE firmware upgrade

Fligtht Controller Features:
- 168 MHz / 252 MIPS Cortex-M4F
- 14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
- Abundant connectivity options for additional peripherals (UART, I2C, CAN)
- Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
- Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)
- Redundant power supply inputs and automatic failover
- External safety switch
- Multicolor LED main visual indicator
- High-power, multi-tone piezo audio indicator
- microSD card for high-rate logging over extended periods of time

Fligtht Controller Specifications:
Processor

- 32bit STM32F427 Cortex M4 core with FPU
- 168 MHz
- 256 KB RAM
- 2 MB Flash
- 32 bit STM32F103 failsafe co-processor

Sensors
- ST Micro L3GD20H 16 bit gyroscope
- ST Micro LSM303D 14 bit accelerometer / magnetometer
- MEAS MS5611 barometer

Interfaces
- 5x UART (serial ports), one high-power capable, 2x with HW flow control
- 2x CAN (one with internal 3.3V transceiver, one on expansion connector)
- Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
- Futaba S.BUS® compatible input and output
- PPM sum signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6V ADC inputs
- Internal microUSB port and external microUSB port extension

Power System and Protection
- Ideal diode controller with automatic failover
- Servo rail high-power (max. 10V) and high-current (10A+) ready
- All peripheral outputs over-current protected, all inputs ESD protected

Ublox M8N GPS Module High Precision with Compass:
- A new generation Ublox GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.3-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.
- A new better GPS optional for APM and Pixhawk. NEO-M8N will be the best choice for the Open Source Controller with it's Super High Precision and Fast Searching Star Efficiency.
- Built-in Compass, the refresh rate increased to 10GHZ
- NEO-M8N with Low-power, High Precision, the Ultimate precision 0.6 meter. The actual test Precision mostly at about 0.9 meter.
- The Pixhawk test the return precision most at 20-30cm. Improved a lot compare to the previous NEO-7N's Precision 1.3-1.6 meter.
- The Star searching Speed and quantity improived, support the Europe's Galileo, Russian GLONASS, Japanese Small Sun, Chinese BDS. The module support GPS + BDS + SBAS or GPS + GLONASS + SBAS

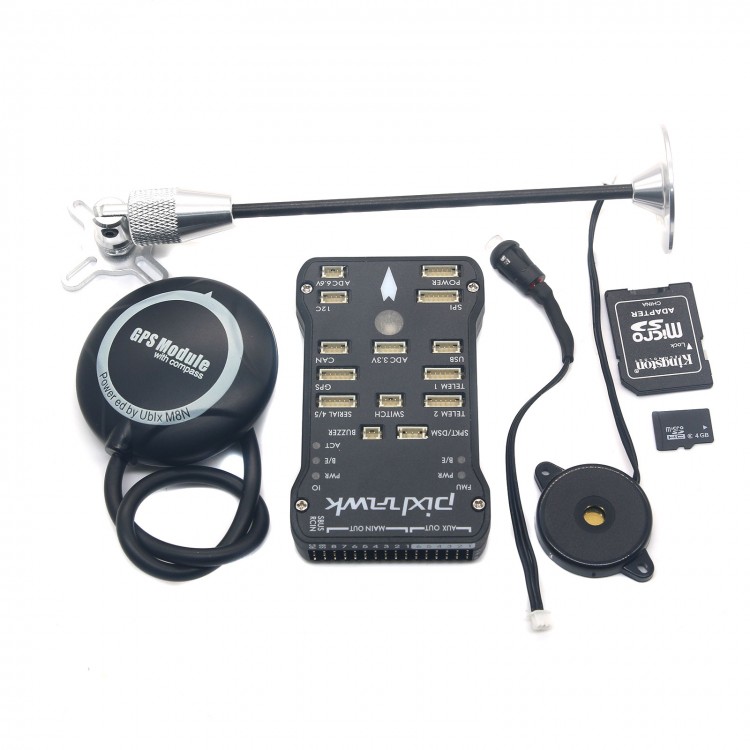

Package Included:
- Fligtht Controller
- M8N GPS
- SD 4G Card
- GPS Bracket
