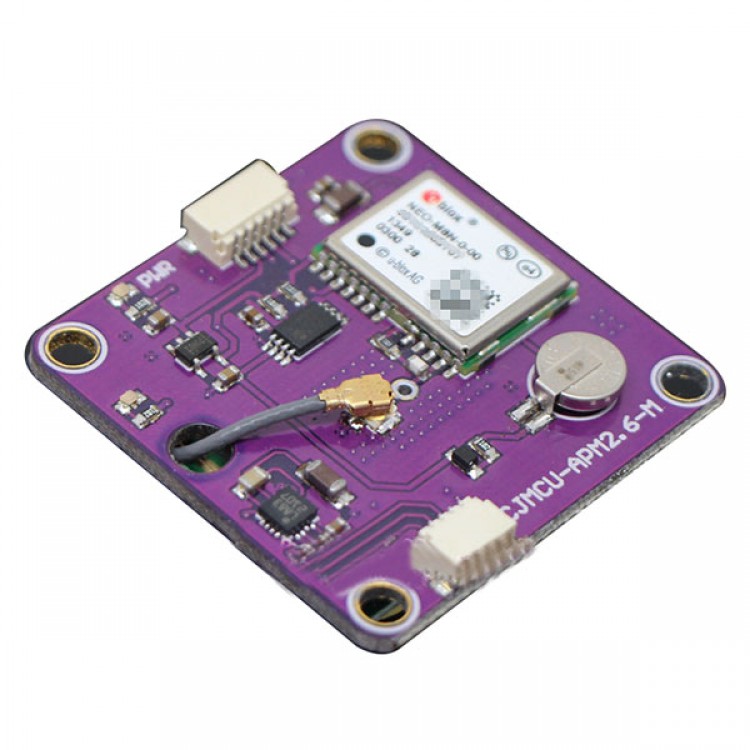

U-blox NEO-M8N Cconcurrent GNSS Modules GPS Moudle with 3 Axis Compass

Product description:
- The NEO-M8 series of standalone concurrent GNSS modules is built on the exceptional performance of the u-blox M8 GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS) engine in the industry proven NEO form factor.
- The NEO-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power. The NEO-M8M is optimized for cost sensitive applications, while NEO-M8N and NEO-M8Q provide best performance and easier RF integration. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments.
- The NEO-M8 combines a high level of robustness and inte-gration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems. This makes NEO-M8 perfectly suited to industrial and automotive applications.
- The DDC (I2C compliant) interface provides connectivity and enables synergies with most u-blox cellular modules. For RF optimization the NEO-M8N/Q features an additional front-end LNA for easier antenna integration and a front-end SAW filter for increased jamming immunity. u-blox M8 modules use GNSS chips qualified according to AEC-Q100, are manufactured in ISO/TS 16949 certified sites, and fully tested on a system level. Qualification tests are performed as stipulated in the ISO16750 standard: “Road vehicles – Environmental conditions and testing for electrical and electronic equipment”.

Highlights:
- Concurrent reception of GPS/QZSS, GLONASS, BeiDou
- Industry leading –167 dBm navigation sensitivity
- Product variants to meet performance and cost requirements
- Combines low power consumption and high sensitivity
- Simple integration with u-blox cellular modules
- Backward compatible with NEO-7, NEO-6 and NEO-5 families

Features:
- Supports NMEA and u-blox UBX binary protocol
- Integrated AssistNow Client for A-GNSS
- GNSS configuration and control
- Structured data visualization in real-time
    . Message, binary and text output
    . Tabular outputs with on-line statistics
- Graphical data visualization with zooming, panning and scaling functions:
    . 2-dimensional plots from large choice of data sets
    . Sky plots
    . Deviation map
- Visualization with maps
- GNSS Camera View: photographic data can be stored in the log file together with the navigation data and later be replayed in the application.
- Export data files to Google Earth and Google Maps
- Docking views (real-time cockpit instrumentation displays):
    . Satellite constellation
    . Compass
    . Clock
    . Altimeter
    . Speedometer
    . Satellite and GNSS information panels
- Data recorder and playback
- Full Copy Paste Support to transfer information to standard PC application software
- Runs on Windows 8, Windows 7, Windows Vista, or Windows XP.

Download:
- u-center Product Summary
- u-center User Guide
- u-center v8.11 Release Notes

Package List:
- U-blox NEO-M8N Cconcurrent GNSS Modules GPS Moudle  X 1pcs
