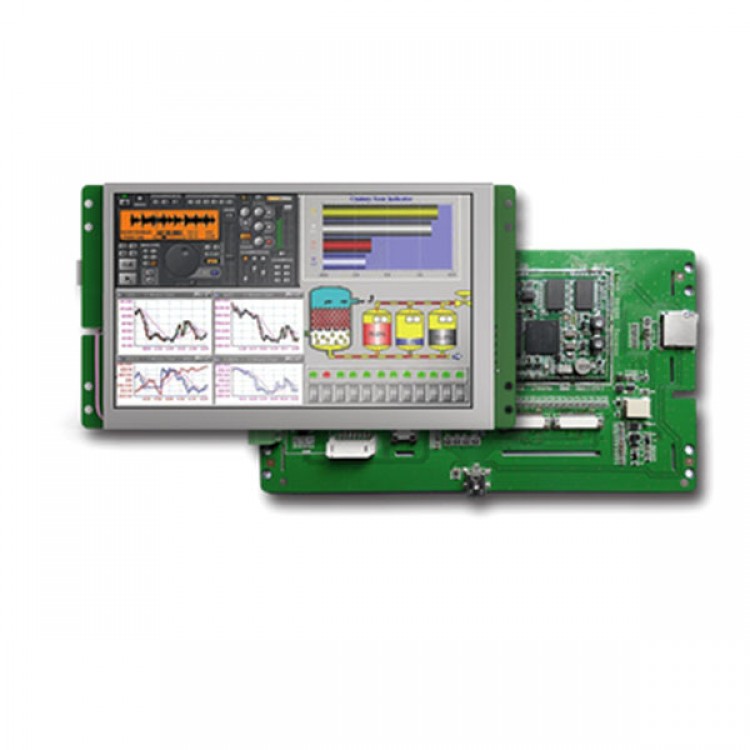

UART LED Display Module 32bit 400MHz CPU Support RS232 RS485 USB and TF Card

Availability: In stock, usually dispatched in 1 business day

  • Price:$200.65
  • Price in reward points: 2007 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $196.64 $192.62 $186.60 $178.58 Contact US
Quantity:

UART LED Display Module 32bit 400MHz CPU Support RS232 RS485 USB and TF Card

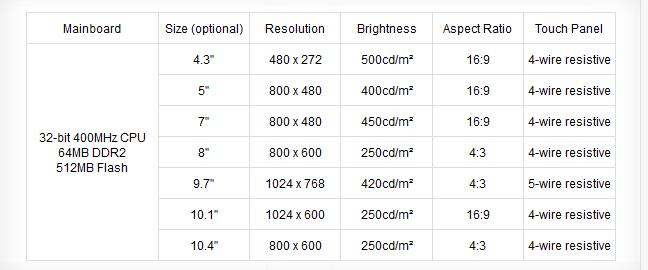

Specifications:

- 32-bit 400MHz frequency CPU;
- 64MB DDR2, Flash 512MB;
- Support TFT 16bpp RGB standard connection;
- Support 8×8 keyboard;
- Support RTC Real-time Clock;
- Support USB and TF card for upgrade and data download;
- Support 4-wire resistance touch;
- Support keyboard buzzer;
- Support several fonts and own build up vocabularies;

Features:

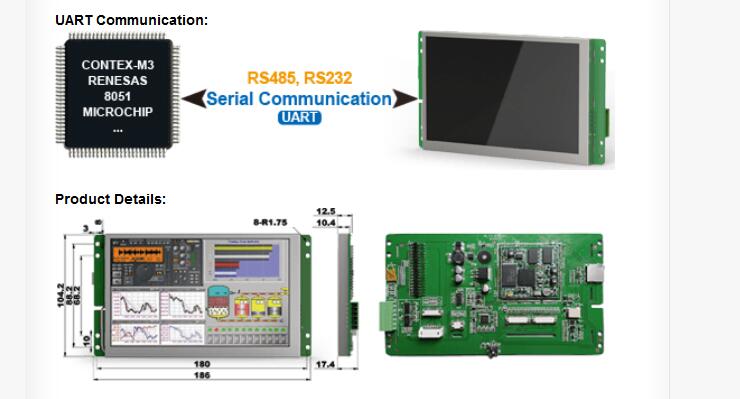

- Design for full duplex UART interface, support RS-232/RS-485(maximun Baud rate 115, 200bps), UART(maximun Baud rate is 921,600bps). Internal software is designed for easy operation and complete PC editing. It is convenient to save time and money for engineer or developer to edit image and UI, etc.
- No need for complicated operating system;
- No need for expensive CPU hardware structure;
- Easily to replace STN, physical key and meter;
- No need to compile complex GUI program;
- Simply communicate through UART(115,200Bps);
- Providing free development tool;
- Panel size: 4.3"-10.4".

Applications:
- Wire tester
- Communications equipment
- Instrument & meter
- Car audio-visual
- Industrial equipment
- Home appliances
- Manipulator controller
- Consumption electronics
- Medical Equipment
- POS
- Electricity, Power Controller Device
- Visual Communication
- Injection Machine

Package Contents:
- 1 x UART LED Display Module
- 1 x RS232 DB9+DC cable (7Pin 15cm)
- 1 x RS485 male (7Pin)
- 1 x TTL flat cable (10Pin 10cm, Lead Pitch: 0.5cm)
- 1 x Mini USB cable
- 1 x 12V DC adapter
- 1 x Touch pen
- 1 x CD Drive
- 1 x Manual
