UART Serial Port to Zigbee Wireless Module 1.6km CC2530 Module with DRF1605H Antenna

Availability: Out Of Stock

  • Price:$17.96
  • Price in reward points: 180 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.60 $17.24 $16.70 $15.98 Contact US
Quantity:

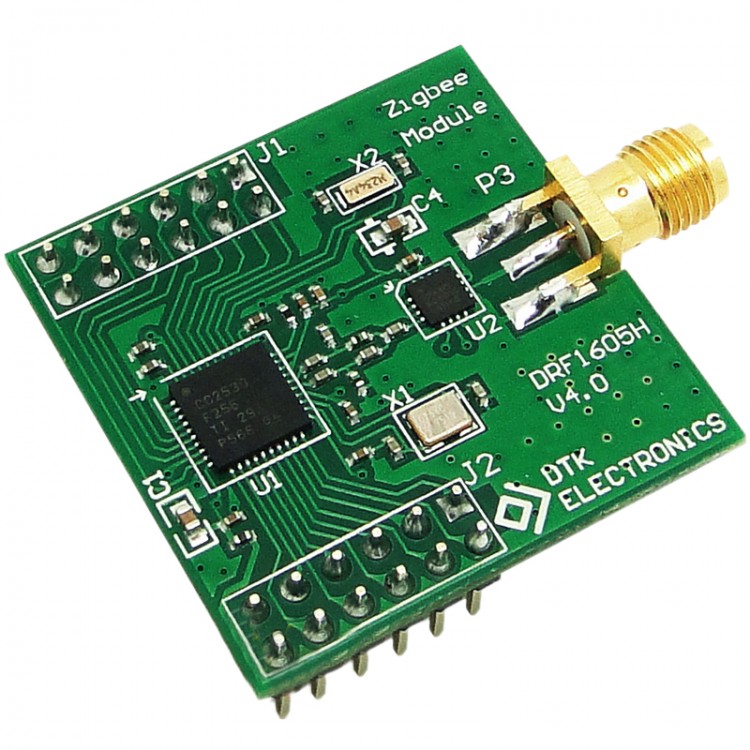

UART Serial Port to Zigbee Wireless Module 1.6km CC2530 Module with DRF1605H Antenna

Description:
- Model: DRT1605H
- Main function: serial port (UART) to Zigbee wireless data transmission (fully compatible with DRF/605, and PIN feet) 1.6 km transmission distance
- Zigbee network is MESH network structure
- The minimum application system of DRT1605H is the microcontroller through the serial port module and transceive data  ,at least only 4 lines to connect: TX, RX, VCC-3.3v, GND
(module factory default settings for the Router,user can switch to Coordiantor)

DRF1605H Parameter:
- Input voltage: DC3.3V range: 2.6V-3.6V
- Temperature: -40~85 degree C
- Weight: 7.4g
- Wireless protocol:  Zigbee2007
- Weirless fraquency: 2.4G(2460MHz,user can change channel(2405MHz-2480MHz, 5MHz) through seriel command
- Speed: 38400bps, can be 2400bps,4800bps,9600bps,19200bps,38400bps,57600bps,115200bps, seriel check: None, can be None, 0dd,Even
- Transmitting distance: visible, broad,1600m
- Operating current: Transmitting:120mA(Max.),80MA(average), receiving:45MA(Max.)Standby:40MA(mAX.)
- Receiving sensitivity: -110 dbm
- Main chip: CC2530F256,256KFLASH, Zigbee SOC chip
- Configurable node: Coordinator, Router(default:Router,PAN-0x199B,frequency=22 (1460Mhz))
- Interface: UART 3.3V, TX-RX. Built-in RS485 direction control, can drive chip RS485,RS232

Package included:
- 1 x Wireless Module
