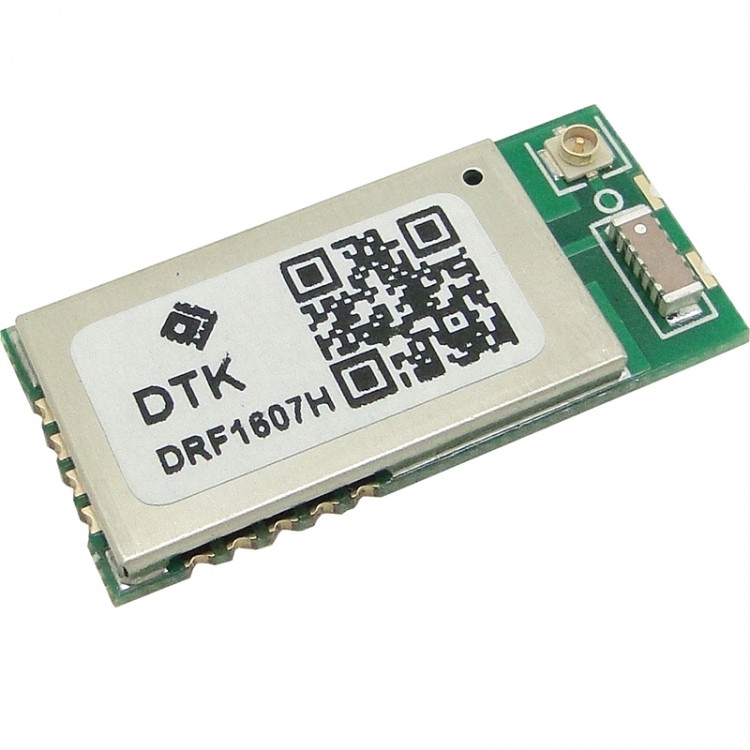

UART Serial Port to Zigbee Wireless Module Power Amplifier DRF1607H CC2530 Module
Feature:
- Input voltage: Standard: DC 3.3V, Range: 2.6V ~ 3.6V
- Temperature Range:-40C ~ 85C
- Serial rate: 38400bps (default), you can set 9600bps, 19200bps, 38400bps, 57600bps, 115200bps
- Radio Frequency: 2.4G (2460MHz), the user can change the channel via the serial port commands (2405MHz - 2480MHz, step length: 5MHz)
- Wireless Protocol: Zigbee2007
- Transmission distance: visible, open, transmission distance 1600 meters (using external 2dBm IPEX antenna); visible, open, transmission distance 400 meters (using patch antenna)
- Working current: Launch: 120mA (max), 80MA (average); receiver: 45mA (max); Standby: 40MA (Max)
- Receiver sensitivity:-110dBm
- Main chip: CC2530F256, 256KFLASH, TI's latest generation ZigBee SOC chip
- Configurable Node: can be configured as Coordinator, Router. The factory default is: Router, PAN ID = 0x199B, channels = 22 (2460MHz)
- Interface: UART 3.3V TX - RX
- Built-in RS485 direction control, RS485 chip can directly drive
- RS232 chip can directly drive
- Direct Drive USB to RS232 chip
Package included:
- 1 x Wireless Module
