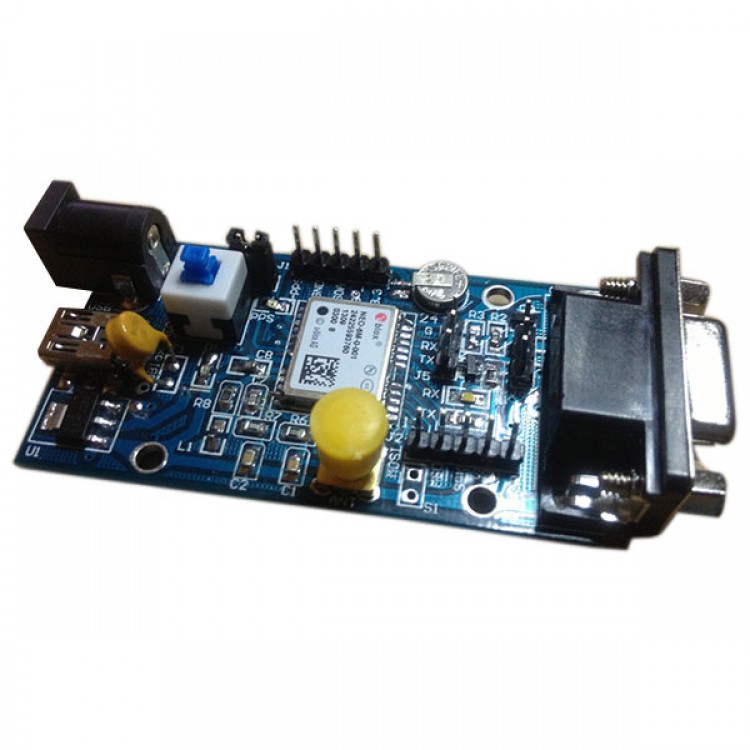

ublox NEO-6M GPS Module Development Board 2.5m 51 STM32 Android Program

Description:
high precision, high performance GPS receiver
5V/5.5mm DC power input socket
5V DC power input pin, 3.3V voltage output pin
with rechargeable battery backup, can realize the hot start 1 seconds fast positioning
UART interface, 5 5VTTL level, 51 single chip processor 5V for easy connection
UART interface, 6 3VTTL level, convenient connection MSP430 3V processor
1 RS232 level 1 serial port, USB2.0 interface
(computer RS232 serial signal or USB access, you can use Kelid 3D navigation map directly positioning navigation.)
use the RS232 pin out
convenient connection with the computer, equipped with professional GPS software, you can set up their own baud rate.
the power supply and working status indicato
out of all signal lines, used for the development of test

Parameters:
C/A code, 1.023MHz code
L1 [1575.42MHz]: receiving frequency band
The positioning performance
2D plane: the average 3m[]
2D plane: 2m[] WAAS. Average, auxiliary
Drift: < 0.02m/s
Timing accuracy: 1US
The reference coordinate system: WGS-84
The maximum altitude: 18000 meters
Maximum speed: 515m/s
Acceleration: < 4G
Electrical properties:
Tracking sensitivity: -161dBm
Acquisition sensitivity: -148dBm
Cold start time: the average 38s
Warm start time: the average 35s
Hot start time: the average 1s
Then the acquisition time: the average 0.1s
Operating temperature:
-40 C to C +80
