• Ublox NEO-7M 10Hz GPS Module 2.5M Precision w/ Protective Case for APM 2.6 APM2.5 Flight Controller

Ublox NEO-7M 10Hz GPS Module 2.5M Precision w/ Protective Case for APM 2.6 APM2.5 Flight Controller

Availability: Out Of Stock

  • Price:$46.90
  • Price in reward points: 469 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.96 $45.02 $43.62 $41.74 Contact US
Quantity:

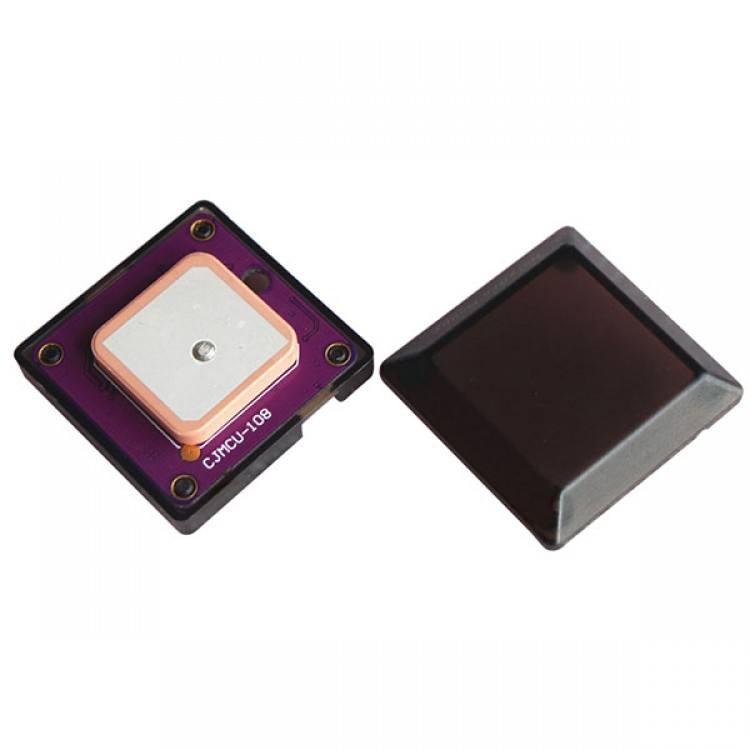

Ublox NEO-7M 10Hz GPS Module w/ Protective Case for APM 2.6 APM2.5 Flight Controller

Descriptions:
- The NEO-7 series is the newest family of standalone GPS/GNSS modules from u-blox. With the exceptional performance of the u-blox 7 multi-GNSS (GPS, GLONASS, Galileo, QZSS and SBAS) engine, the NEO-7 series delivers high sensitivity and minimal acquisition times in the industry proven NEO form factor.

- The NEO-7 series provides maximum sensitivity while maintaining low system power. The NEO-7M is optimized for cost sensitive applications, while NEO-7N provides best performance and easier RF integration. The industry proven NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GPS-hostile environments.

Highlights:
- Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS
- Cost and performance optimized versions
- Combines low power consumption and high sensitivity
- Simple integration with u-blox wireless modules
- Backward compatible with NEO-6 and NEO-5 families


  • Receiver type
    • 56-channel u-blox 7 engine
    • GPS L1 C/A, GLONASS L1 FDMA
    • QZSS L1 C/A
    • Galileo E1B/C
    • SBAS: WAAS, EGNOS, MSAS
  • Navigation update rate up to 10 Hz
  • Accuracy GPS / GLONASS
    • Position 2.5 m CEP / 4.0 m
    • SBAS 2.0 m CEP / n.a.
  • Acquisition GPS / GLONASS
    • Cold starts: 29 s / 30 s
    • Aided starts: 5 s / n.a.
    • Reaquisition: 1 s / 3 s
  • Sensitivity GPS / GLONASS
    • Tracking: –162 dBm / –158 dBm
    • Cold starts: –148 dBm / –140 dBm
    • Warm starts: –148 dBm / –145 dBm
  • Assistance
    • AssistNow Online
    • AssistNow Offline
    • AssistNow Autonomous
    • OMA SUPL & 3GPP compliant
  • Oscillator: TCXO (NEO-7N), crystal (NEO-7M)
  • RTC crystal: built-in
  • Anti jamming: active CW detection and removal
  • Memory: ROM (NEO-7M) or Flash (NEO-7N)
  • Supported a

Package list:
- 1 x Ublox NEO-7M 10Hz GPS Module w/ Protective Case
