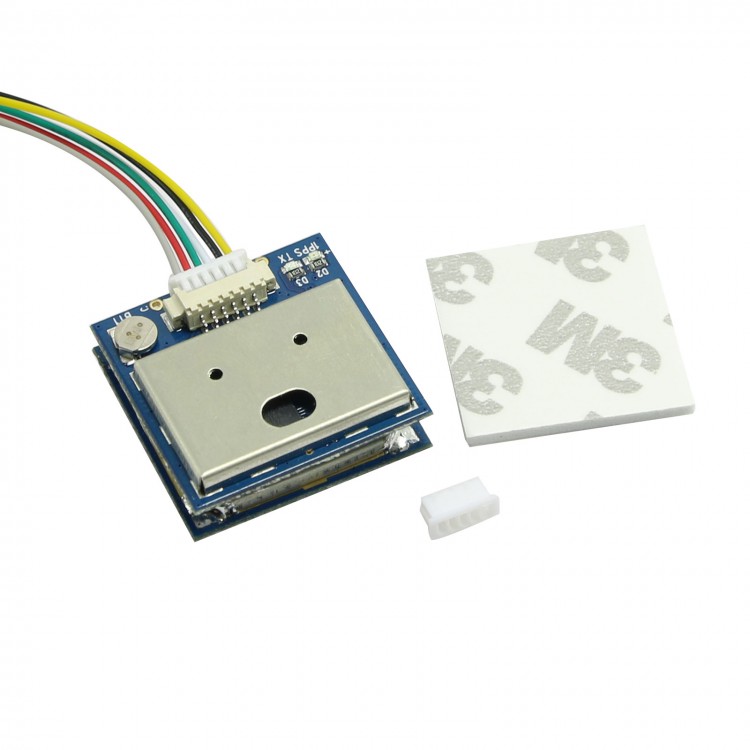

UBLOX NEO-7N Flight Control GPS with compass ICHMC5883L for APM Pixhawk Multicopter FPV photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.16
  • Price in reward points: 182 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.80 $17.43 $16.89 $16.16 Contact US
Quantity:

UBLOX NEO-7N Flight Control GPS with compass ICHMC5883L for APM Pixhawk Multicopter FPV photography

Description:

- Default: TTL level, 38400, 4HZ, standard UBX agreement output, with compass ICHMC5883L
- Baud rate to choose, 4800,9600,19200,38400,115200(default:38400)
- Output agreement to choose: NMEA-0183 or UBX(default:UBX)
- Output frequency to choose: 1Hz-10Hz output(default:4Hz)
- Size: 28mm*28mm*10mm

Parameters:
- Power supply: DC voltage: 2.8V-6V, typical: 3.3V or 5.0V
- Consumption: acquisition: 50mA @5V
- Receiving format: GPS L1 1575.42MHz   C/A code
- Receiving channel: 56 searching channel
- Receiving sensitivity: cold start:  -162dBm, acquisition: -148dBm
- Positionig time: cold start: 27S    warm start: 26S    hot start: 3S
- Level positioning precision:    2m  at open wild
- Output frequency: 1HZ-10HZ, default 4HZ
- 1PPS precision: <15ns,  pulse width: 100ms
- Acceleration precision: 0.1m/s
- Max height: 18000m
- Max speed: 515m/s
- Max acceleration: 4G
- UART interface: UART port: TXDA and RXDA
- Support Rate: 4800bps to 115200bps, default 9600bps
- UART is used for NMEA output
- Working temp: -40---85defree
- Storage temp: -55---95degree
- Weight: 10g
