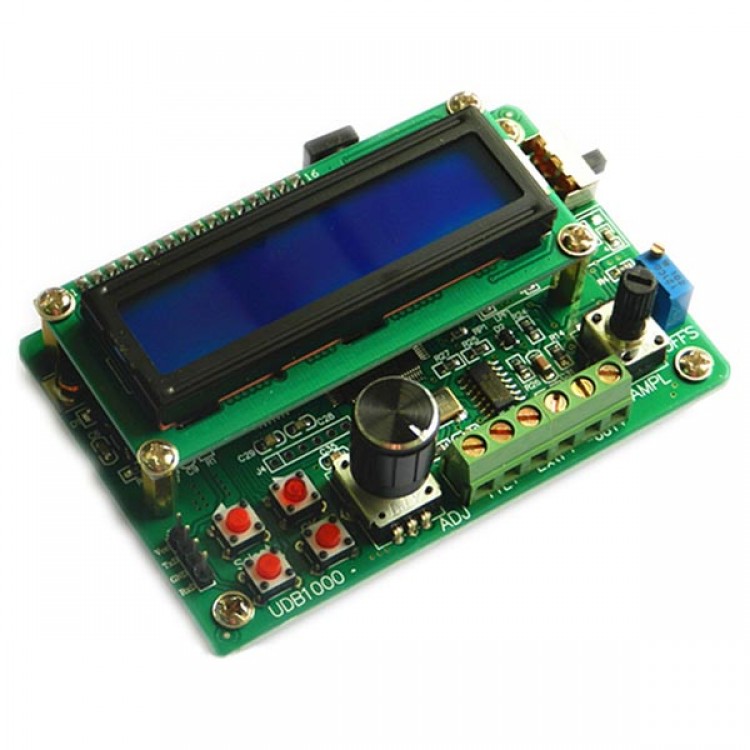

UDB1005S 60Mhz Function Signal Generator Source Frequency Counter DDS Module Wave 5MHz

Signal Output function :
- Output waveforms:Sine wave, Square wave and Triangle wave.
- Output amplitude:≥10Vp-p(signal output, no load).
- Output impedance:50Ω±10%(signal output).
- DC offset:±2.5V(no load).
- Display:LCD160.
- Frequency range:0.01Hz ~ 5MHz(SG1005).
- Resolution:0.01Hz.
- Frequency Stability:±1×10-6.
- Frequency accuracy:±5×10-6.
- Sine wave distortion:≤0.8% (reference frequency is 1kHz).
- Trinagle linearity:≥98% (0.01Hz~10kHz).
- Rise and fall time of square wave:≤100ns.
- Square Wave Duty range:1%~99%

TTL Output function:
- Frequency range:0.01Hz ~ 5MHz(SG1005).
- Amplitude:>3Vp-p.
- Fan Out:>20 TTL loads.
- COUNTER function:
- Counter Range:0-4294967295.
- Frequency Meter Range:1Hz~60MHz.
- Input Voltage Range:0.5Vp-p~20Vp-p.
- Storage and transferred: 10 set of parameters with storage and recall functions.

Package list:
- UDB1005S module x 1
- Power supply x 1
