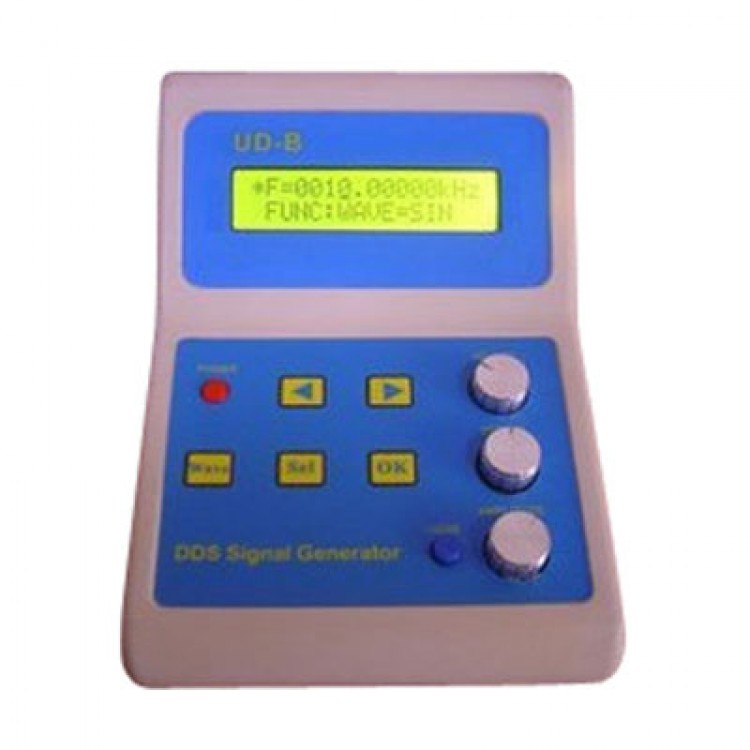

UDB1100 2MHz Generator Module DDS Function with 5V Power Kit

Description:
- This is a full DDS signal source, the use of DC5V power supply can output sine wave, square wave (1% -99% duty cycle can be adjusted), triangle, and sawtooth waveforms and other functions, the maximum output of up to 10Vpp, frequency from 0.01Hz-2MHz, a resolution of 10mHz, both TTL sync output and 60MHz frequency counter with three kinds of functions in one.
- UDB1100 series is the original SG1000 series of upgrades to increase the beautiful plastic case, upgrade to the BNC input connector output interface, while increasing the output attenuation switch (-32dB, about 40 times), making this instrument a minimum capacity of 10mV output signal about
- It’s the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research.
Features:
- High frequency resolution: 0.01Hz
- High frequency accuracy: ± 20ppm
- Low distortion: <1%
- Square wave duty cycle of 1% to 99% accuracy adjustable
- Triangular modulation account space than the output of two kinds of sawtooth after
- variable DC level control
- External Frequency Measurement
- Preset frequency stored, transferred functions
- Interface: Function of signal output (main output) ,TTL output ,external count input
Specifications:
- The main output waveform : sine wave and square-wave, triangle wave, sawtooth wave
- Maximum output amplitude: 10Vpp (no-load)
- Output impedance :50 ω + 10%
- Dc bias: + 5V (no-load)
- Range: 1% - 99% (square-wave)
- Display: LCD1602
- Output frequency range:
- sine wave: 0.01Hz-2MHz
- Square-wave: 0.01 Hz - 1MHz (the valid range)
- Triangle wave :0.01 Hz - 1MHz (the valid range)
- Sawtooth wave :0.01 Hz ~ 1MHz (the valid range)
- Resolution :0.01 Hz
- Frequency stability: + 1 x 10-6
- Frequency error :+ 5 x 10-6
- Sine wave distortion degree: < 1% (benchmark frequency 1kHz)
- Triangle wave linearity : 0.01 Hz ~ 100 KHZ 98%; 95%, 100 KHZ ~ 1MHz;
- Square-wave rising and falling time: < 30ns
- TTL output : TTL level: Vp - p. 3 p ,Take 20TTL load load capacity
- The external measurement functions:
- Frequency range: 60MHz 1Hz
- Vpp - signal amplitude: 0.5 20Vpp
- The count range: 0-4294967296
- Storage and append the: has a 10 groups with v function parameters storage
Package included:
-1 x 2MHz DDS Function Signal Generator Source Module Wave
-1 x 5V Power Supply
-1 x Signal Output Cable
