UDB1200 DC 5V Fully Programmable DDS Signal Generator Dual TTL Drive IGBT with ADC UDB-1210S

Description:

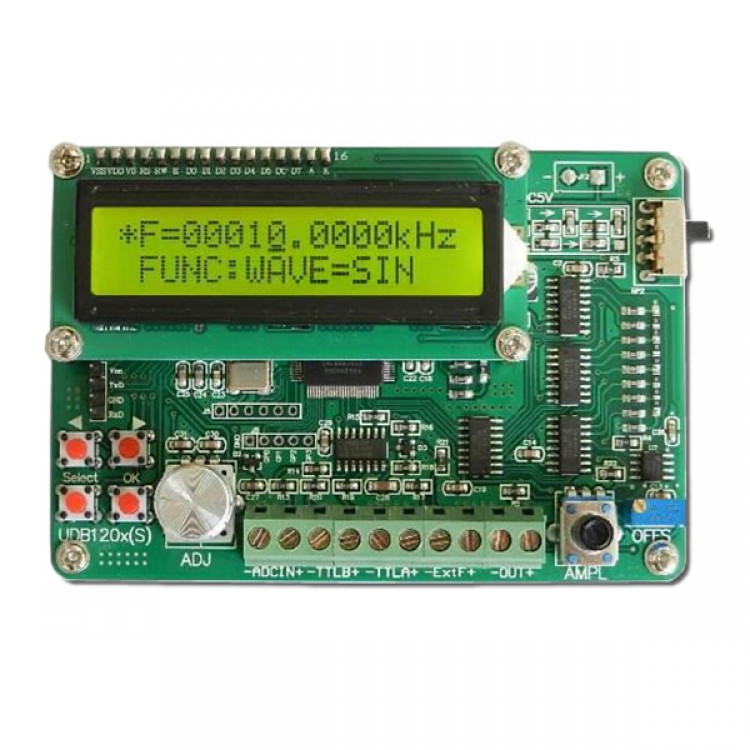

This is a full DDS signal source, the use of DC5V power supply can output sine wave, square wave (1% -99% duty cycle can be adjusted), triangle, and sawtooth waveforms and other functions, the maximum output of up to 9Vpp, frequency from 0.001Hz-2MHz (also optional 5MHz and 10MHz), resolution of 0.001Hz, both with dual reverse TTL output, can produce digitized adjustable duty cycle is used to drive the IGBT two TTL signals with 60MHz frequency meter, also has a resolution of 1mV ADC, the measurement range 0V to 5V, so the DDS products combines many functions in one.

Frequency:
-  Model: UDB1202S:
   Sine wave output frequency : 0.001Hz-2MHz
   Square wave output frequency : 0.001Hz-1MHz
   Triangle wave output frequency : 0.001Hz-1MHz
   Frequency meter measuring frequency: 0-60MHZ

- Model: UDB1205S
   Sine wave output frequency : 0.001Hz-5MHz
   Square wave output frequency : 0.001Hz-1MHz
   Triangle wave output frequency : 0.001Hz-1MHz
   Frequency meter measuring frequency: 0-60MHZ

- Model: UDB1210S
   Sine wave output frequency : 0.001Hz-10MHz
   Square wave output frequency : 0.001Hz-1MHz
   Triangle wave output frequency : 0.001Hz-1MHz
   Frequency meter measuring frequency: 0-60MHZ

Technical indicators:
- Main Output waveform Sine wave , square wave , triangle wave , sawtooth
- Maximum output amplitude 9Vpp ( no load )
- Digital output amplitude control range : 0-255
- Output Impedance: 50Ω ± 10%
- DC 5V ( no load )
- Duty range: 1% -99% ( square wave )
- Display: LCD1602
- Resolution: 0.001Hz
- Frequency stability: ± 1 × 0.000001
- Frequency error ± 5 ×  0.000001
- Sine Wave Distortion < 1% ( reference frequency 1kHz)
- Triangle wave linearity ≥ 98%, 0.001Hz-100kHz;≥ 95%, 100kHz-1MHz;
- Square wave rise and fall times <30ns
- TTL output TTL level ≥ 3 Vp-p
- With a load capacity load 20TTL
- Size: 95 ( length ) * 63 ( W) mm

Outer measurements :
- Frequency range : 1Hz-60MHz
- Signal amplitude : 0.5Vpp-20Vpp
- Outside the counting range :0 -4294967296
- ADC input : 0V-5V
- Storage and transferred : 10 set of parameters with storage and recall functions.

NOTE: This one is with UDB-1210S

Package Included:
- 1 x DDS Signal Generator Dual TTL Drive IGBT with ADC UDB1210S
