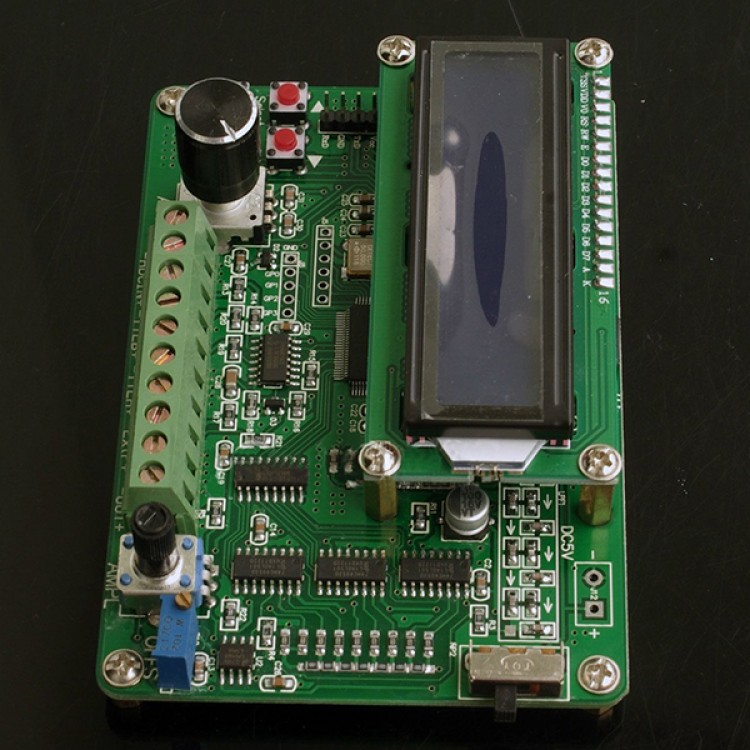

UDB1205S 5MHz DDS Signal Generator Source UDB1200 w/ Frequency Sweep Function Dual TTL ADC

Description:
- Model Number:5MHz UDB1205S
- siganal generator Output waveforms:Sine wave, Square wave and Triangle wave and 2saw tooth wave
- Output impedance:50Ω+/=10%(signal output)
- DC offset:+/=2.5V(no load)
- Display:LCD1602
- Frequency range:0.01Hz ~ 5MHz(UDB1205S)
- Resolution:0.01Hz(10MHz)
- Sine wave distortion:<=0.8% (reference frequency is 1kHz)
- Trinagle linearity:>=98% (0.01Hz-10kHz)
- Rise and fall time of square wave:<=100ns
- Square Wave Duty range:1%-99%(digital control mode)

Product Description

Introduction of the instrument

UDB12xxS series direct digital synthesis signal generator use DDS technology and FPGA design with the characters of high stability and low distortion ect., with the function of TTL output and 60MHz frequency meter,UDB100xS series have sweep function, the start and end frequency and sweep time can be set at will. It’s the ideal equipment of electronic engineer, laboratory, production lines, the teaching and scientific research.

Main technology data
1.Signal Output function
Output amplitude >=9Vp-p (signal output,no load)(MAX)
About 0.1Vp-p(MIN)
Output impedance 50 omega +/-10%(signal output)
DC offset +/-2.5V(no load)
Display LCD1602
Frequency range 0.01Hz - 5MHz(UDB1205)
0.01Hz - 3MHz(UDB1203)
0.01Hz - 5MHz(UDB1205)
0.01Hz - 10MHz(UDB1210)
Resolution 0.01Hz(10mHz)
Frequency Stability +/-1x10-6
Frequency accuracy +/-5x0-6
Sine wave distortion <=0.8%(reference frequency is 1kHz)
Trinagle linearity >=98%(0.01Hz-10kHz)
Rise and fall time of square wave <=100ns
Square Wave Duty range 1%-99%(digital control mode)

2.TTL Output function
Frequency range 0.01Hz - 2MHz(UDB1202S)
0.01Hz - 3MHz(UDB1203S)
0.01Hz - 5MHz(UDB1205S)
0.01Hz - 10MHz(UDB1210S)
Amplitude >3Vp-p
Fan Out >20 TTL loads

3.COUNTER function
Counter Range 0-4294967295
Frequency Meter Range 1Hz-60MHz
Input Voltage Range 0.5Vp-p -20Vp-p

4.ADC function
Voltage measurement range 0 - 5V
Resolution ratio 0.001V(1mV)
Accuracy +/-0.5%

5.SWEEP function(as for UDB100xS series)
Frequency range fM1 to fM2
Sweep time 1s-99s

6.Others function
Save and Load Parameter M0-M9(M0:default load)

Package included:
- 1 x UDB1205S 5MHz DDS Signal Generator Source with Frequency Sweep Function Dual TTL ADC
- 1 x Power supply
