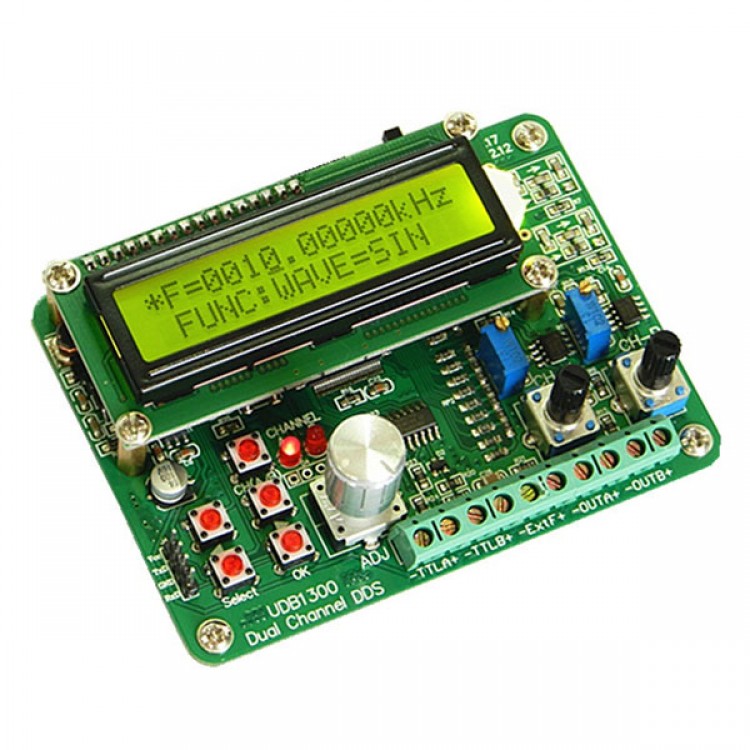

UDB1300 Series Dual DDS signal source Dual TTL signal generator 60MHz frequency meter sweep UDB1302S
Technical indicators:
- A, B output waveforms: sine, square, triangle, ramp, etc. Lissajous
- A, B output amplitude: 10Vpp (no load)
- Output impedance: 50Ω ± 10%
- DC Offset: ± 5V (no load)
- Duty cycle range: 0.1% -99.9% (square wave)
- Display: LCD1602
- Output frequency range: Sine: 0.01Hz-2MHz
Square wave: 0.01Hz-1MHz (the valid range
Triangular wave: 0.01Hz-1MHz (the valid range)
Sawtooth: 0.01Hz-1MHz (the valid range)
- Resolution: 0.01Hz
- Frequency Stability: ± 1 × 10-6
- Frequency error: ± 5 × 10-6
- Sine Wave Distortion: <1% (reference frequency 1kHz)
- Triangle wave linearity: ≥ 98%, 0.01Hz-100kHz; ≥ 95%, 100kHz-1MHz;
- Square wave: rise and fall times <30ns
- Dual TTL output: TTL level ≥ 3 Vp-p
With a load capacity load 20TTL
- A, B two output signals Phase: 0 ° -360 ° adjustable
- A, B two output signals can be tracking adjustment
- Computer communication function, on-board Output TTL serial port,
- Can be connected to a computer
- Test Photo Gallery:
- 1 Lissajous
- A, B channel output frequency 10KHz, sinusoidal waveform, phase 0 degrees, lissajous
Shipping list:
- UDB1302S 1PCS
- DC5V Power 1PCS
- Pdf version using the document
