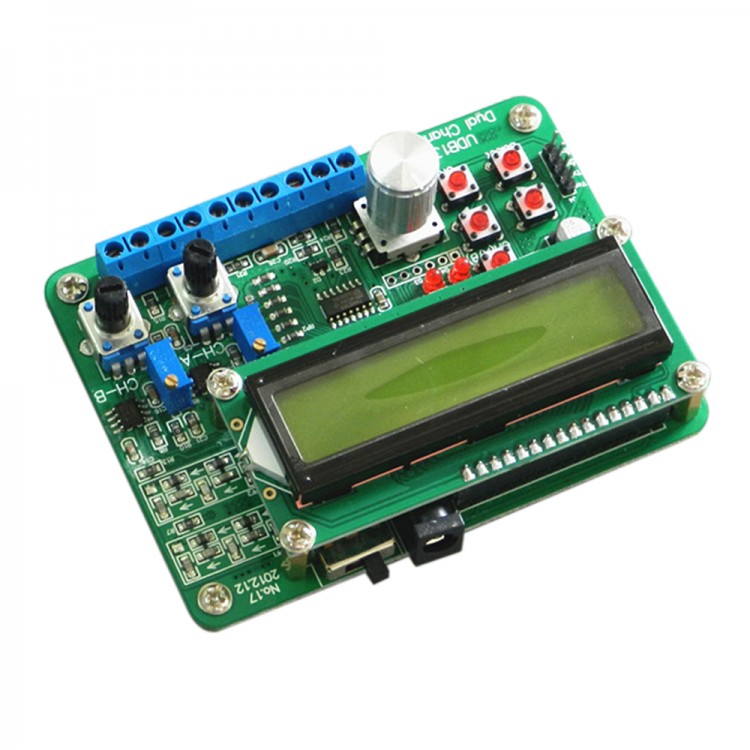

UDB1300 Series UDB1305S Dual DDS Signal Source Double TTL Generator Frequency Sweep 60 MHZ Frequency Meter w/USB to TTL Cable

Availability: Out Of Stock

  • Price:$45.87
  • Price in reward points: 459 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $44.95 $44.04 $42.66 $40.82 Contact US
Quantity:

UDB1300 Series UDB1305S Dual DDS Signal Source Double TTL Generator Frequency Sweep 60 MHZ Frequency Meter

Description:
UDB130xS series double channels DDS signal source is added dual channel output function. A,B output, the phrase difference o-359 (adjustable), square wave proporation 0.1%-99.9% (adjustable).

Frequency:
-  Model: UDB1302S:
   Sine wave output frequency : 0.001Hz-2MHz
   Square wave output frequency : 0.001Hz-1MHz
   Triangle wave output frequency : 0.001Hz-1MHz
   Frequency meter measuring frequency: 0-60MHZ

- Model: UDB1305S
   Sine wave output frequency : 0.001Hz-5MHz
   Square wave output frequency : 0.001Hz-1MHz
   Triangle wave output frequency : 0.001Hz-1MHz
   Frequency meter measuring frequency: 0-60MHZ

- Model: UDB1308S
   Sine wave output frequency : 0.001Hz-8MHz
   Square wave output frequency : 0.001Hz-1MHz
   Triangle wave output frequency : 0.001Hz-1MHz
   Frequency meter measuring frequency: 0-60MHZ

Parameters:
- Main Output waveform Sine wave , square wave , triangle wave , sawtooth
- Maximum output amplitude: >= 9Vp-p ( no load )
 - Digital output amplitude control range : 0-255
- Output Impedance: 50Ω ± 10%
- Resolution: 0.001Hz
- Frequency stability: ± 1 × 0.000001
- Frequency error ± 5 ×  0.000001
- Sine Wave Distortion: < 0.8% ( reference frequency 1kHz)
- Triangle wave linearity: ≥ 98%, (0.001Hz-10kHz)
- Square wave rise and fall times <100ns
- Frequency of 2 channels TTL:
  0.001Hz-2MHz(UDB1302S)
  0.001Hz-5MHz(UDB1305S)
  0.001Hz-8MHz(UDB1308S)
- Outside the counting range :0 -4294967295
- Amplitude: 3Vp-p
- Number of storage and transfer: 10
- Position: M0-M9
- Weight: 96g
- Size: 100x75x36 (mm)

Package Included:
- 1 x UDB1300 Series UDB1305S Dual DDS Signal Source
- 1 x USB to TTL cable
