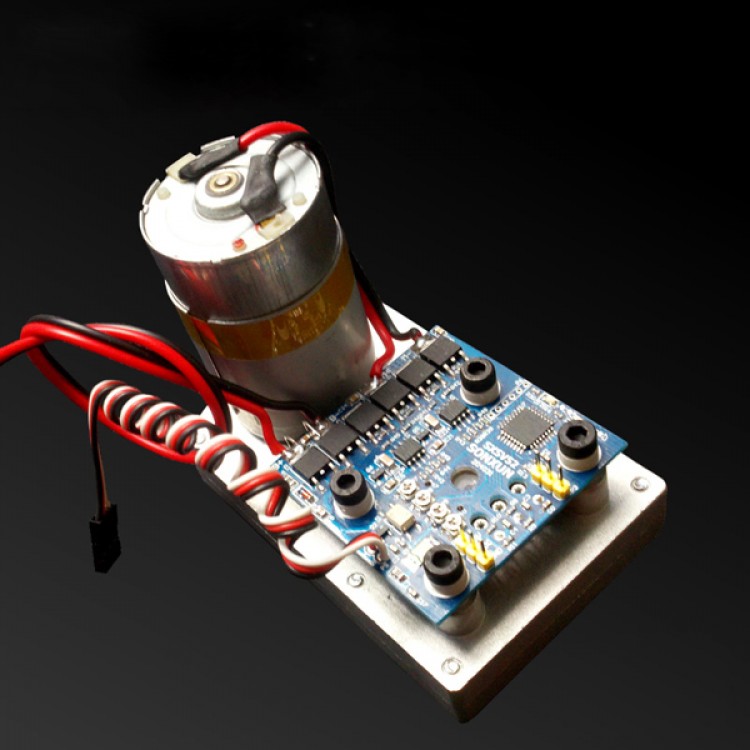

• Ultra High Power Large Torque Servos 24V 180KG.CM Large Metal Servo for Large Robot Robotic Car

Ultra High Power Large Torque Servos 24V 180KG.CM Large Metal Servo for Large Robot Robotic Car

Availability: In stock, usually dispatched in 1 business day

  • Price:$99.90
  • Price in reward points: 999 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $97.90 $95.90 $92.91 $88.91 Contact US
Quantity:

Ultra High Power Large Torque Servos 24V 180KG.CM Large Metal Servo for Large Robot Robotic Car

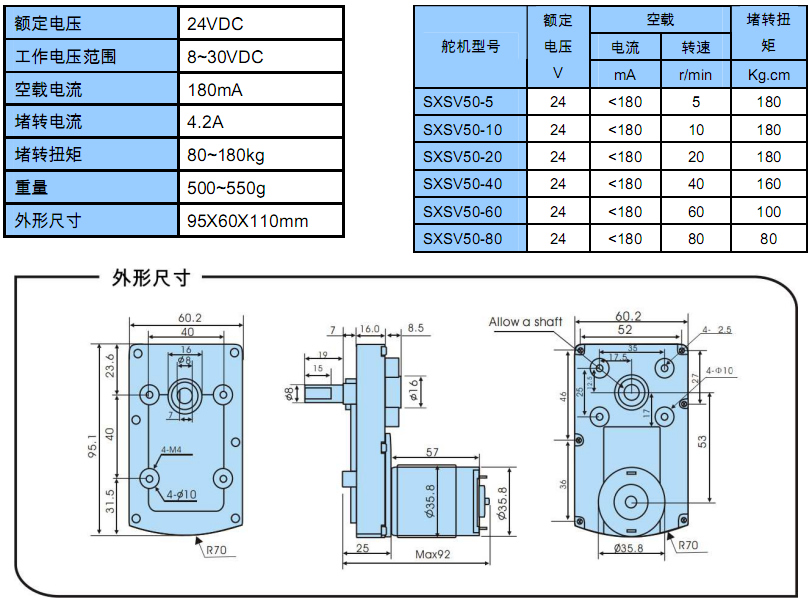

Parameters:
- Operating voltage: 24Vdc
- Limit voltage: 12 to 30Vdc
- No-load current: <500mA
- Maximum torque: 180kg.cm (24V)
- No-load speed: 20 rpm / min _AT_ 24V
- Rotation angle: 180 ° to 230 ° adjustable (P9 potentiometer adjustment)
- Input signal pulse width: 0.5 to 2.5ms is adjustable from 1 to between 2ms (P10 potentiometer adjustment)
- The deadband time: 4us
