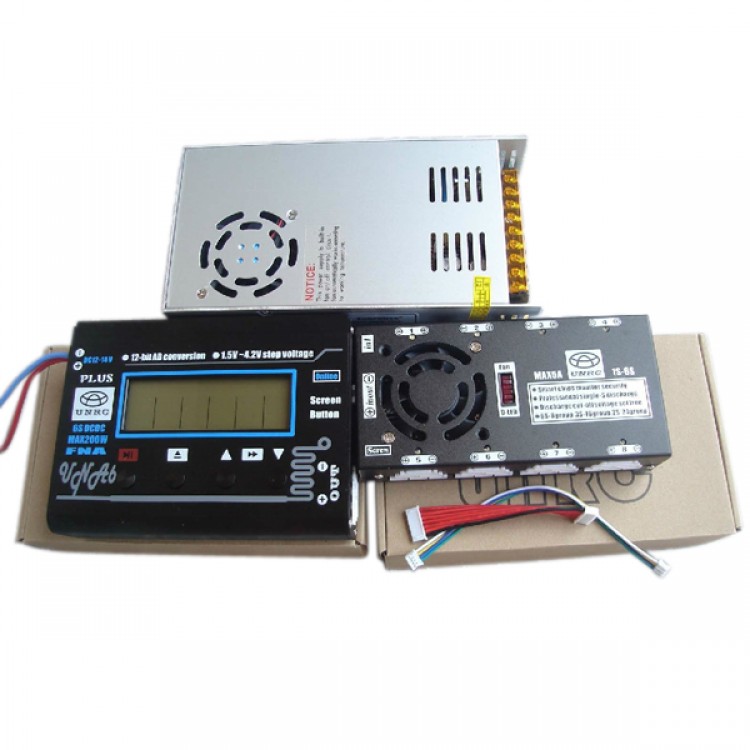

UN-A6 PLUS UNA6 (1S-6S)LiPo Battery Pro Balance Charger
- New housing and PCB layout, larger and more clear LCD display, more convection cooling design. UN-A6PLUS new debut.
- added input display, the power supply voltage at a glance.
- adding dynamic balance function, according to fine-tune the voltage of the batteries charge current, shorten the charging time.
- using a high-precision AD conversion circuit, voltage control accuracy of ± 0.002V, current control accuracy of 0.1A, regardless of the characteristics of each road to rechargeable batteries, charging separate ways at the end of the battery voltage deviation is less than 5 mV.
- the real six-way independent charge non-interference, six-way real-time display battery voltage and charging current, so your battery charge status at a glance.
- by adding cascade function can be combined into two A6 and share a 12S charger input power.
- more comprehensive protection, input over-voltage, reverse polarity protection, output reverse polarity protection, output damage protection. When the CPU detects a voltage has reached the default way, this way charging circuit will be locked so that it stopped working, so you do not overcharge the battery concerns.
- automatic temperature control thermal design, the charger when the internal temperature is too high, CPU cooling fan starts automatically, and the speed with automatic temperature adjustment. If for any reason undesirable heat over the limit temperature, the charger will suspend charging (to prevent damage to the device), to be resumed automatically after the temperature drop charge.
- the charger input voltage DC 12 ~ 14V, 15V input voltage exceeds the protection state will issue a warning sound interval of 0.6 seconds, and does not charge work.
- with five operating modes (and filling, artificial, automatic, discharge, cascade) more powerful.
- This is the newest UN-A6 PLUS balance charger.
-12-bit AD conversion
-Input: DC 12V to 15V
- 0.3A to 8A Step Current
- 2.5V to 4.2V Step Voltage
- Charging port: 1 x 6S port, 2 x 3S ports, 3 x 2S ports
- Dimension: 150L x 12W x 4.3H cm
- 100% brand new!
- 1x UN-A6 PLUS UNA6
