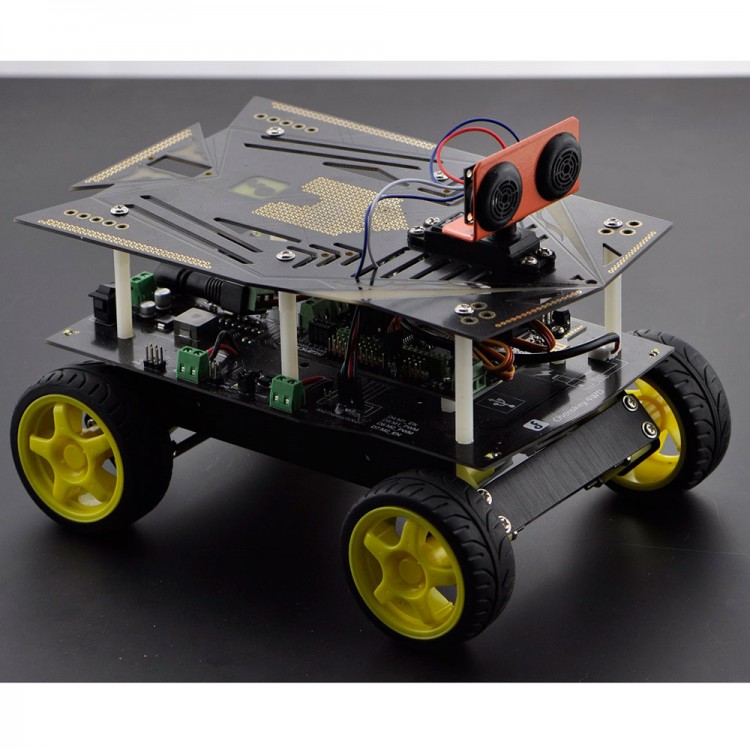

Unassembled DFRbot 4WD Mobile Robotic Kit Smart Car Ultrasonic Scanning Obstacle Avoidance Robot

Availability: In stock, usually dispatched in 1 business day

  • Price:$136.81
  • Price in reward points: 1368 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $134.07 $131.34 $127.23 $121.76 Contact US
Quantity:

Unassembled DFRbot 4WD Mobile Robotic Kit Smart Car Ultrasonic Scanning Obstacle Avoidance Robot

Description:

The main controller adopts Bluno Romeo, integrates Arduino R3, motor driver, IO sensor expansion board and bluetooth 4.0 communication module.

Function:
- Ultrasonic scanning obstacle avoidance
- Romeo Bluno bluetooth (can connect to bluetooth handle for remote control)

Note:
This kit is spare parts, not assembled.
No battery.

Specification:
- Control panel: Romeo Bluno
- Microprocessor: ATmega328P
- Board type: UNO Arduino
- Controller operating voltage: USB power supply 5V or external DC 7~12V input
- Ultrasonic measurement range: 4~500cm (resolution of 1cm)
- Rudder rotation angle range: 180
- Size after assembly: 220mm*175mm*170mm
- Machine weight: 772g (without battery)
- Max load: 500g

Package included:
- Bluno Romeo controller x1
- DF05BB servo x1
- URM37 V3.2  ultrasonic ranging module x1
- URM ultrasonic module bracket x1
- Cherokee 4 wheel mobile robot x1
- Cherokee extended board x1
- High quality rubber wheel X4
- Micro DC motor X4
- DC2.1 power adapter x1
- Power adapter cable x1
- Fastener (screw nut) x1
- Motor connecting line x1
- High quality DuPont line x1
- Battery box for 5*AA batteyr x1
- High quality USB micro data line x1
