Unassembled DFRobot Arduino Smart Car Robot Devastator Tank Mobile Platform for Raspberry Pi DIY
Description:

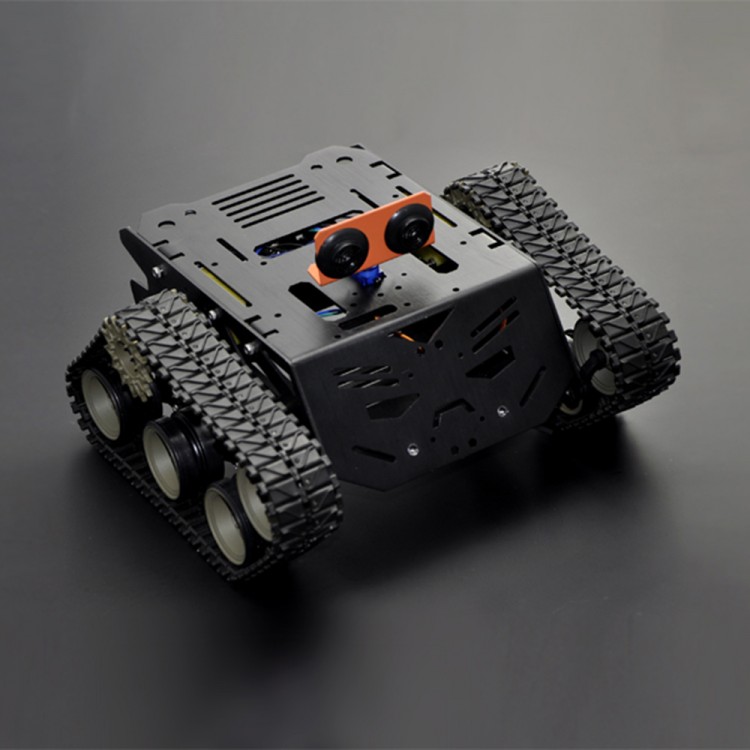

DFRobot presents Devastator Tank Mobile Platform. It is fully compatible with most popular controller such as Arduino controller, Raspberry Pi controller and so on.
The Devastator uses high strength aluminum alloy which makes it extremely solid and durable. The high speedmotors and premium tracks also allows it to move swiftly everywhere. Whatsmore, it benefits from a high performance suspension and enjoys an outstanding mobility across even the toughest terrains.
Users are able to add various sensors, servos, turntables and controllers (e.g. Romeo All-in-one, Raspberry Pi Model B+) with multiple mounting holes on the Devastator platform. It is perfect for hobbyists, educational, competitions and research projects.
Note:
This is spare parts, not assembled.
The Ultrasonic sensor and control board are not included in this kit.
Instructions: Click here
Product installation manual: Click here
Specification:
- Working Voltage: 3-8V DC
- Driver wheel diameter: 43mm
- Maximum Speed: 36cm/s
- Size: 225*220*10 mm
- Weight: 780g
Micro motor:
- Operating voltage: 3~7.5 V
- Rated voltage: 6 V
- Rated torque: 0.2 kgf.cm
- Operating temperature: -10~+60 degrees
- Storage temperature: -30~+85 degrees
- Motor type: 130
- Maximum load current (3V): 140 mA
- Maximum load current (6V): 170 mA
- No load speed (3V):90 rpm
- No load speed (6V):160 rpm
- The maximum output torque: 0.8 kgf.cm
- The maximum torque current: 2.8 A
- Output mode: bidirectional shaft output
- Gear tooth number ratio: 1:120
- Output shaft diameter: 5.4 mm
- Weight: 45 g
- Motor instructions: Click here
Shipping List
- Devastator Tank Mobile Platform x 1
