Underwater Camera is designed to connect to your TV, VCR, LCD TV or some Digital Video Camera/Camcorders with an A/V Input.
Have provided "Gender Adaptors" in the case that your Digital Video Camera cannot accept male RCA plugs.
The Underwatercam is ideal for use on your home TV or VCR (when using Underwatercam in the pool) or can be used on TV's found on cruise or dive boats, 12V portable VCRs or LCD Monitors (with RCA Input).
7 Inch TFT-LCD Color Monitor Specification:
Vision: TFT
Display Made: 16:9
System: PAL/NTSC
Video Input: 1Vp-p 75Ω
Consuming Power: <9.5W
Power: DC 12V
Resolution: 480(W) x RGB x 234(H)
Operating Temperature: -10 ℃ ~ +50 ℃
Storage Temperature: -20 ℃ ~ +60 ℃
Camera Specification:
Input Voltage: DC 12V
Image Sensor: 1/4 Sharp Color CCD
Pixel Resolution: PAL: 500 x 582 NTSC: 512 x 492
Electronic Shutter: 1/60~1/5000 Sec
Lens Angular Field of View: 60 Degree
Cable Length: 20m
Effective Focal Length: 6mm, 9 Light
Maximum Relative Aperture: F/2.0
Resolution: 420 TV Lines
Video Signal Output: 1V(p-p) Composite Video Signal at 75ohm Termination
Power Consumption: 1 Watt
S/N Ratio: 40dB
Packaging Material: High Impact ABS Plastic
Operating Temperature: -50℉~+160℉
Humidity: 100% Condensing
Features:
7-inch TFT LCD underwater Video System.
60deg Camera Vision Angle.
Video Input terminal.
Horizontal Resolution: 420TV lines.
12V DC operation.
Optional CCD Camera.
Waterproof Camera Cabinet.
Rechargeable Battery.
20m Cable.
3 Ways power supply: AC110/220V, 60/50Hz AC Adaptor (with Adaptor) DC12V-15V Car/boat cord Battery power supply (rechargeable Batteries included).
Easy carrying aluminum case.

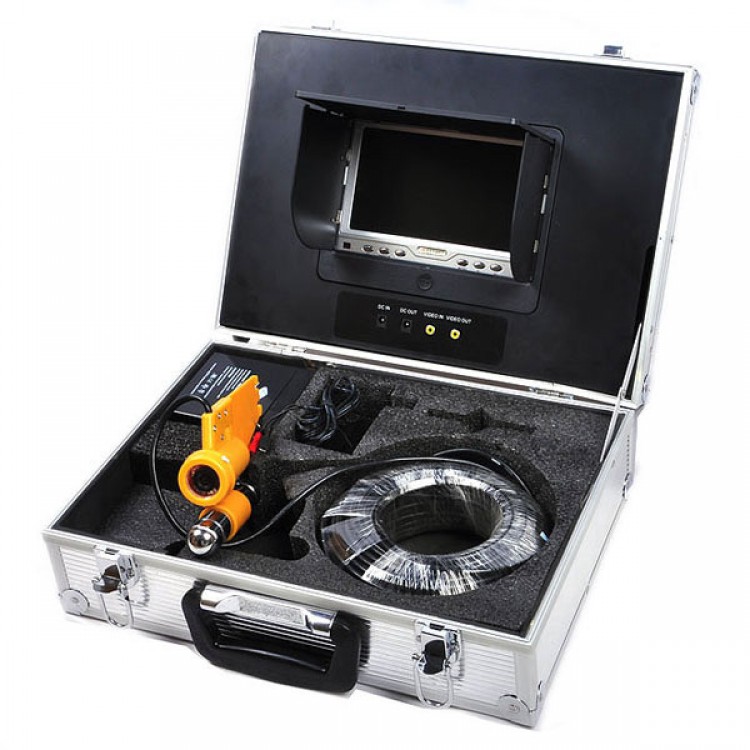

Item Includes:
1 x 7" inch Color TFT LCD Monitor
1 x Underwater Camera with Cable
1 x DC 12V Battery Charger
1 x 12V Sealed Lead-Acid Rechargeable Battery (Optional)
