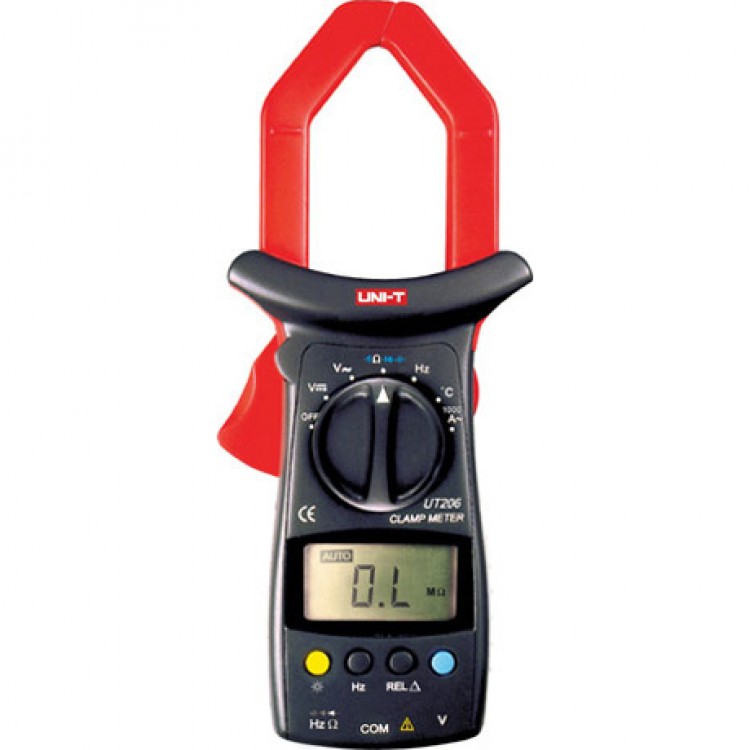

• Uni-T UT206   Digital Clamp Multimeters

Uni-T UT206 Digital Clamp Multimeters

Availability: In stock, usually dispatched in 1 business day

  • Price:$67.46
  • Price in reward points: 675 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $66.11 $64.76 $62.74 $60.04 Contact US
Quantity:

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/600V (0.8%+1)
AC Voltage 4V/40V/400V/600V (1.2%+5)
AC Current 400A/1000A (2%+5)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (1%+2)
Capacitance 4nF/40nF/400nF/4mF/40mF/200mF (3%+5)
Temperture(oC) -40oC~1000oC (1%+3)
Frequency 10Hz ~ 10MHz (0.1%+3)
Duty Cycle 0.1% - 99.9%
Special Functions
Auto Ranging
Diode
Continuity Buzzer
Relative Mode
Data Hold
Display Backlight
Full Icon Display
Sleep Mode
Jaw Opening Light
Max. Jaw Size 40mm
Low Battery Display
Input Impedance for DC Voltage Measurement Around 10MW
Max. Display 3999


GENERAL CHARACTERISTICS

Power 9V Battery (6F22), 3V Battery (AAAx2)
LCD Size 52 x 27mm
Product Colour Body-Grey, Jaw-Red
Product Net Weight 540g (excluding tool box)
Product Size 260 x 90 x 45mm
Standard Accessories Test Lead, English Manual, Batteries, Point Contact Temperature Probe, Tool Box
Optional Accessories* Clip-On Test Lead Light(UT-TL), Built-In Test Lead Light(UT-L1), Built-In Test Lead Light Plus(UT-L2), Carrying Bag
Standard Packing Gift Box
Standard Quantity Per Carton 20 pcs
Standard Carton Measurement 591 x 370 x 474 mm (0.104 CBM Per Standard Carton)
Standard Carton Gross Weight 27.6kg
