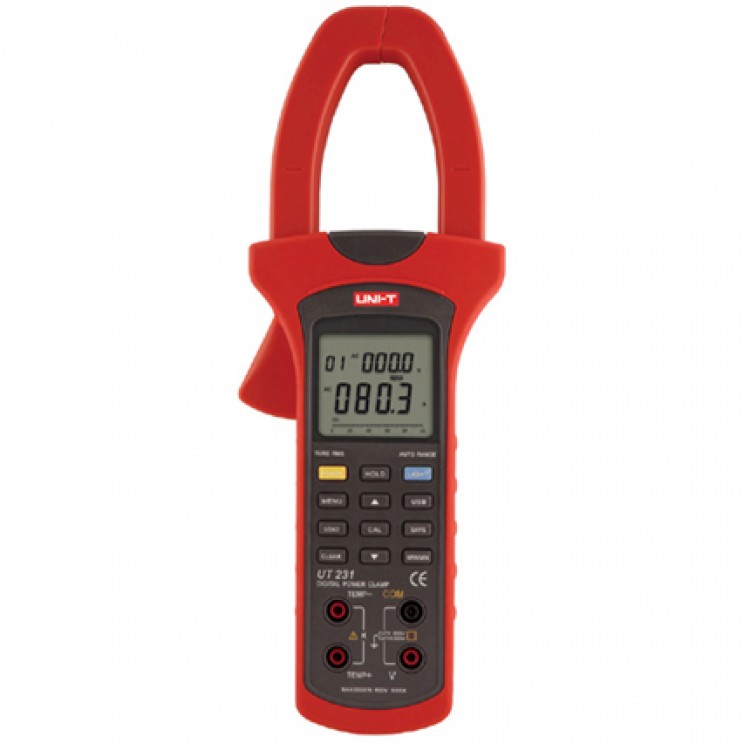

Uni-T UT231  Digital Power Clamp Meters
  • Uni-T UT231 Digital Power Clamp Meters

  • SKU:11806
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 16
  • Price:$159.02
  • Price in reward points: 1590
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $155.84 $152.66 $147.89 $141.53 Contact US


Basic Functions Range Best Accuracy
AC Voltage 15V/100V/300V/600V (1.2%+5)
AC Current 40A/100A/400A/1000A (2%+5)
Active Power 0.01kW-600kW (3%+5)
Apparent Power 0.01kVA-600kVA (3%+5)
Reactive Power 0.01kVAr-600kVAr (4%+5)
Power Factor 0.3~1(Capacitive or Inductive ) (0.02+2)
Phase Angle 0o~360O 1O
Frequency 20Hz-500Hz
Active Energy 1~9999 kWh (3%+2)


Special Functions
Auto Ranging
Single-phase 2-wire
3-phase 3-wire
3-phase 4-wire
True RMS AC Voltage or Curren
Calibration Feature
Data Logging 99
Data Recall
Max/Min Mode
Data Hold
Display Backlight EL
Full Icon Display
Sleep Mode
Low Battery Display

Input Impedance for AC

Voltage Measurement

Around 10MW
Max. Display 9999
Analogue Bar Graph


Power 1.5V Battery (LR6) x 4
LCD Size 46 mm x 42 mm
Product Color Red and Grey
Product Net Weight 601g
Product Size 303 x 112 x 39 mm
Standard Accessories UT231 - Test Lead, Batteries, English Manual, Point
Contact Temperature Probe, Alligator Clips, USB Interface
Cable, Software, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 24 pcs
Standard Carton Measurement 610 x 360 x 305 mm (0.067 CBM Per Standard Carton)
Standard Carton Gross Weight 28kg
