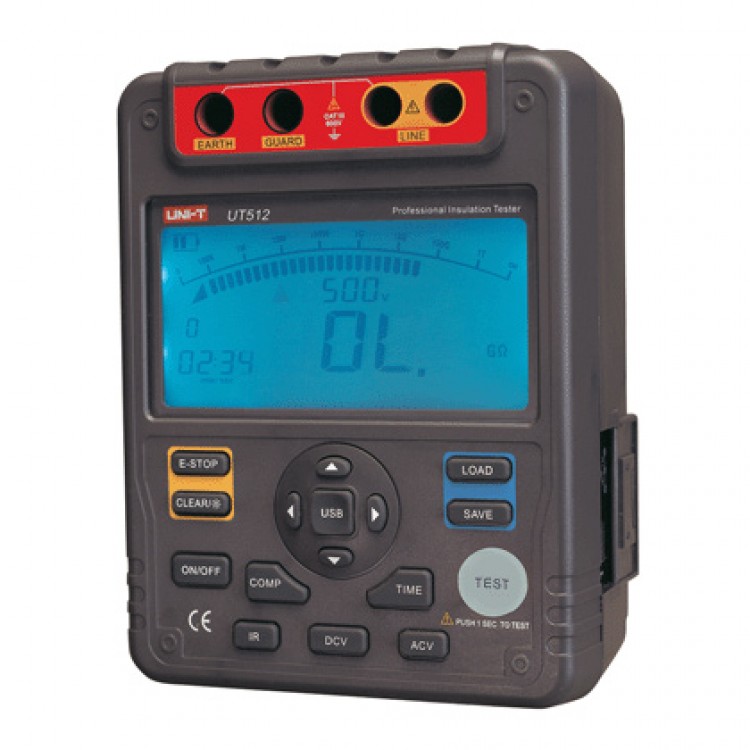

• Uni-T UT512  Insulation Resistance Testers

Uni-T UT512 Insulation Resistance Testers

Availability: In stock, usually dispatched in 1 business day

  • Price:$204.54
  • Price in reward points: 2045 Reward Points: 20
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $200.45 $196.36 $190.22 $182.04 Contact US
Quantity:

SPECIFICATIONS

Basic Functions Range Best Accuracy
Insulation Resistance 0.5MΩ ~100GΩ  (3%+5)
Testing Voltage 500V/1000V/1500V/2500V 0~20%
DC Voltage 600V (2%+5)
AC Voltage 600V (2%+5)
Special Functions
Auto Ranging
Short Circuit Current   <1.8mA
Data Logging   18
Data Recall
Sleep Mode
Polarization index (PI)
Dielectric Absorption(DAR)
Timer Around 15 minutes
Compare
Battery Display
White Display Backlight

Over Range and High
Voltage Warning


USB
Max. Display 9999
Analogue Bar Graph


GENERAL CHARACTERISTICS

Power 1.5V Alkaline Battery(LR14)×8
LCD Size 123 mm x 58 mm
Product Color Red and Grey
Product Net Weight 1.8Kg
Product Size 202×155×94mm
Standard Accessories 2 pcs of one plug test lead to one alligator clip (black and Green), 1pc of two plugs test lead to one alligator clip (Red), Batteries, English Manual , Tool Box, USB Interface Cable, Software
Optional Accessories* Power Adapter
Standard Individual Packing Gift Box
Standard Quantity Per Carton 4 pcs
Standard Carton Measurement 525 × 335 × 345mm (0.061 CBM Per Standard Carton)
Standard Carton Gross Weight 18kg
