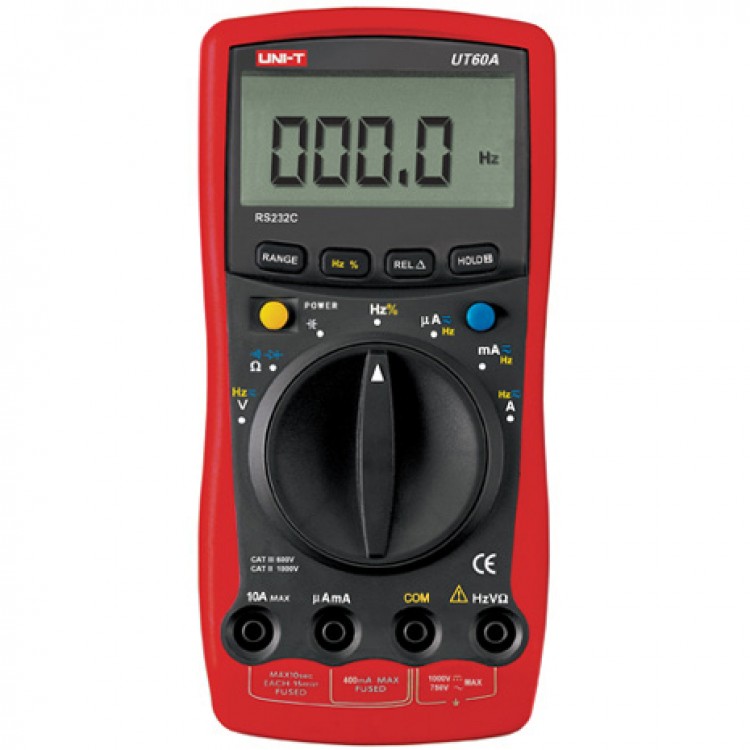

• Uni-T UT60A   Modern Digital Multimeters

Uni-T UT60A Modern Digital Multimeters

Availability: In stock, usually dispatched in 1 business day

  • Price:$44.00
  • Price in reward points: 440 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.12 $42.24 $40.92 $39.16 Contact US
Quantity:

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/1000V (0.8%+1)
AC Voltage 4V/40V/400V/750V (1%+5)
DC Current 400mA/4000mA/40mA/400mA/4A/10A (1%+2)
AC Current 400mA/4000mA/40mA/400mA/4A/10A (1.5%+5)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (1%+2)
Capacitance 40nF/400nF/4mF/40mF/100mF (3%+5)
Frequency 10Hz-10MHz (0.1%+3)
Duty Cycle 0.1%~99.9%
Special Functions
Fused 10A Range
Auto Ranging
Diode
Continuity Buzzer
Relative Mode
Data Hold
RS232C
Full Icon Display
Low Battery Display
Input Impedance for DC
Voltage Measurement
Around 10MW
Max Display 3999


GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 63 x 31mm
Product Colour Red and Grey
Product Net Weight 340g
Product Size 177 x 85 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Test Clip, RS232C Interface Cable, Software
Optional Accessories* Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)
Standard Packing Gift Box
Standard Quantity Per Carton 40 pcs
Standard Carton Measurement 595 x 400 x 326mm (0.078 CBM Per Standard Carton)
Standard Carton Gross Weight 24.6kg
