UNI-T UT61E Modern Digital Multimeter Meter AD DC RMS
  • UNI-T UT61E Modern Digital Multimeter Meter AD DC RMS
  • UNI-T UT61E Modern Digital Multimeter Meter AD DC RMS
  • UNI-T UT61E Modern Digital Multimeter Meter AD DC RMS
  • UNI-T UT61E Modern Digital Multimeter Meter AD DC RMS
  • UNI-T UT61E Modern Digital Multimeter Meter AD DC RMS

  • SKU:11077
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 6
  • Price:$61.99
  • Price in reward points: 620
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $60.75 $59.51 $57.65 $55.17 Contact US

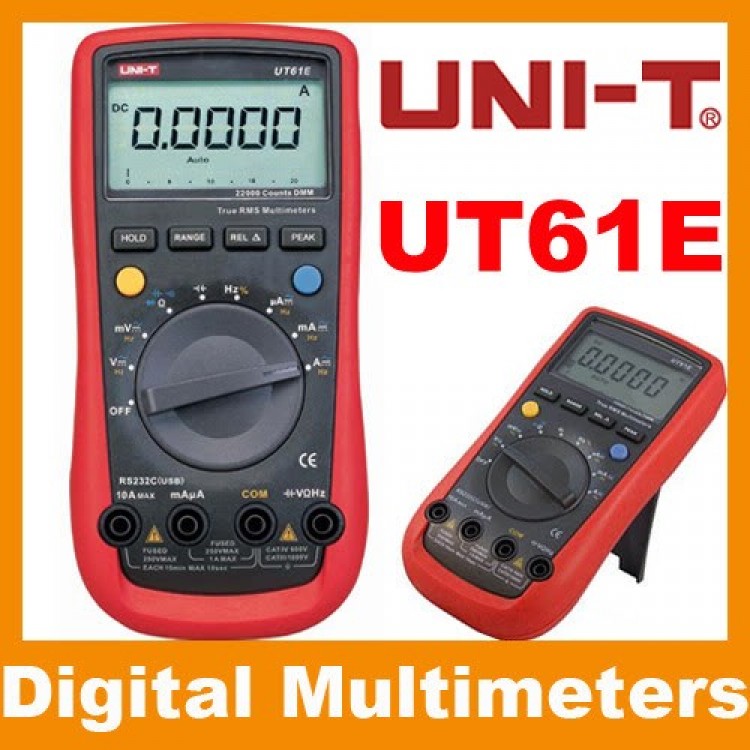

UNI-T UT61E Modern Digital Multimeter Meter AD DC RMS

The TRMS PCE-UT 61E has a clear high contrast backlight LCD display with a indicator up to 22000 to allow for a good reading from any viewing angle even with poor light conditions. The case of the TRMS PCE-UT 61E comes with a housing to protect it against harsh conditions.

Main Features:
- Power: 9V Battery (6F22)
- LCD Size: 65 x 43mm
- Product Colour: Red and Grey
- Product Net Weight: 370g
- Product Size: 180 x 87 x 47mm
- Standard Individual Packing: Gift Box
- Standard Quantity Per Carton: 20pcs
- Standard Carton Measurement: 465 x 335 x 345mm (0.054 CBM Per Standard Carton)
- Standard Carton Gross Weight: 2kg

Specifications:

Basic Functions

Range

Best Accuracy

DC Voltage

220mV/2.2V22V220V/1000V

(0.1%+2)

AC Voltage

220mV/2.2V/22V/220V/750V

(0.8%+10)

AC Current

220mA/2200mA/22mA/220mA/2.2A/10A

(0.8%+10)

DC Current

220mA/2200mA/22mA/220mA/2.2A/10A

(0.5%+10)

Resistance

220Ω/2.2KΩ/22kΩ/220kΩ/2.2MΩ/22MΩ/220MΩ

(0.5%+10)

Capacitance

22nF/220nF/2.2mF/22mF/220mF/2.2mF/22mF/220mF

(3.0%+5)

Frequency

10Hz-220MHz

(0.01%+5)

FrequencyResponse

0

45Hz~10kHz

Duty Cycle

0.1%~99.9%

Yes

Special Functions





Auto/Manual Ranging



Yes

Diode



Yes

RMS



Yes

Continuity Buzzer



Yes

Data Hold



Yes

Peak Value



Yes

Display Backlight



Yes

REL



Yes

Sleep Mode

Around 15 Minutes

Yes

Analogue Bar Graph



46

RS232



Yes


Package Including:
- 1 x UNI-T UT61E Modern Digital Multimeter
- 1 x Test Lead
- 1 x UT61 Multi-Purpose Socket
- 1 x RS232C Interface Cable
- 1 x Installation Guide & Computer Interface Software (CD-ROM)
