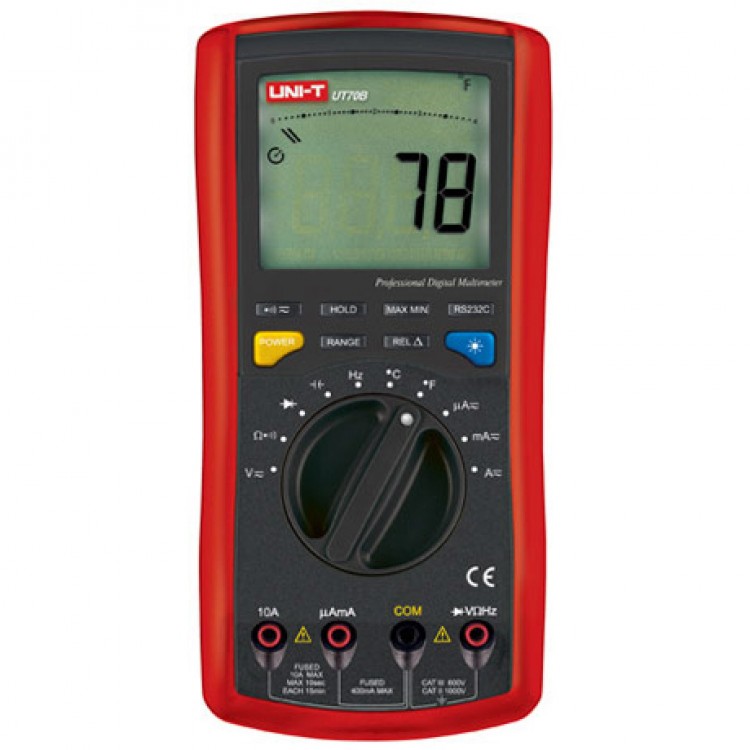

Uni-T UT70B   Modern Digital Multi-Purpose Meters
  • Uni-T UT70B Modern Digital Multi-Purpose Meters

  • SKU:11803
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 9
  • Price:$88.85
  • Price in reward points: 889
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $87.07 $85.30 $82.63 $79.08 Contact US

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/1000V (0.8%+1)
AC Voltage 4V/40V/400V/750V (1%+5)
DC Current 400mA/4000mA/40mA/400mA/10A (1%+2)
AC Current 400mA/4000mA/40mA/400mA/10A (1.5%+5)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (1%+2)
Capacitance 4nF/40nF/400nF/4mF/40mF/400mF/4mF/40mF (4%+3)
Temperture(oC) -40oC~1000oC (1%+3)
Temperture(oF) -40oF~1832oF (1%+4)
Frequency 4kHz/40kHz/400kHz/4MHz/40MHz/400MHz (0.1%+3)
RPM 40kRPM (0.1%+3)
Special Functions
Fused 10A Range
Auto Ranging
Diode
Continuity Buzzer
Max/Min Mode
Relative Mode
Data Hold
RS232C
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement 10MW
Max. Display 3999
Analog Bar Graph


GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 62 x 53mm
Product Colour UT70B - Grey, Holster - Red
Product Net Weight 560g (including holster)
Product Size 195 x 90 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, RS232C Interface Cable, Software, Holster
Optional Accessories* Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2), Carrying Bag
Standard Packing Gift Box
Standard Quantity Per Carton 20 pcs
Standard Carton Measurement 535 x 365 x 380mm (Around 0.074 CBM Per Standard Carton)
Standard Carton Gross Weight 20kg
