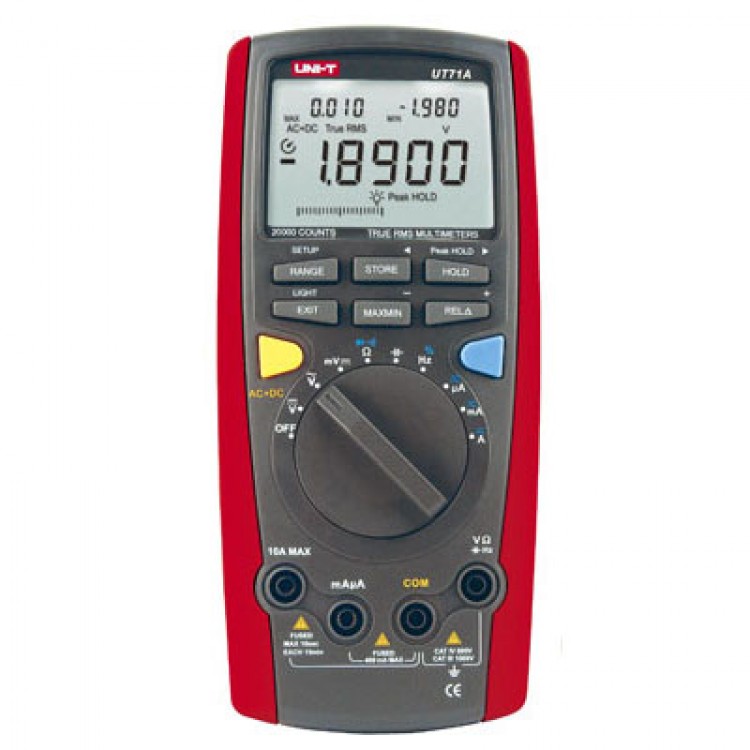

• Uni-T UT71A   Intelligent Digital Multimeters

Uni-T UT71A Intelligent Digital Multimeters

Availability: In stock, usually dispatched in 1 business day

  • Price:$115.21
  • Price in reward points: 1152 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $112.91 $110.60 $107.15 $102.54 Contact US
Quantity:

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 200mV/2V/20V/200V/1000V (0.1%+8)
AC Voltage 2V/20V/200V/1000V (0.8%+40)
ACBandwidh 100KHz
DC Current 200µA/2000µA/20A/200mA/10A (1%+20)
AC Current 200µA/2000µA/20A/200mA/10A (0.5%+50)
Resistance 200W/2kW/20kW/200kW/2MW/20MW (1.5%+20)
Capacitance 20nF/200nF/2µF/20µF/200µF/2mF/20mF (0.1%+20)
Temperature(OC) -40OC~1000OC
Temperature(OF) -40OF~1832OF
Frequency 20Hz/200Hz/2kHz/20kHz
/200KHz/2MHz/20MHz/200MHz
(0.1%+15)
Duty Cycle 10%~90% (1%+30)
4~20mALoop 0%~100%
Power Measurement
Special Functions
Fused 10A Range
Auto Ranging
Current Measurement Alarm
Function Set Up
Votage & Current :
AC + DC Measurement

Data Logging
Data Recall
Diode
Continuity Buzzer
True RMS
Peak Hold
Max/Min Mode
Relative Mode
Data Hold
USB
Double Display Backlight
Full lcon Disply
Sleep Mode
Low Battery Display

Input Impedance for
DC Voltage Measurement

DC 200mV : Around 2.5GW
All Other Ranges : 10MW
Max. Display 20000
Analogue Bar Graph

GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 73 x 50 mm
Product Colour Red and Grey
Product Net Weight 384g
Product Size 200 x 93 x 40mm
Standard Accessories Test Lead, Battery, English Manual, Alligator Clip,
Test Clip, USB Interface Cable, Software, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 20 pcs
Standard Carton Measurement

542 x 376 x 388mm
(0.079 CBM Per Standard Carton)

Standard Carton Gross Weight 19kg
