• Uni-T UT71C   Intelligent Digital Multimeters

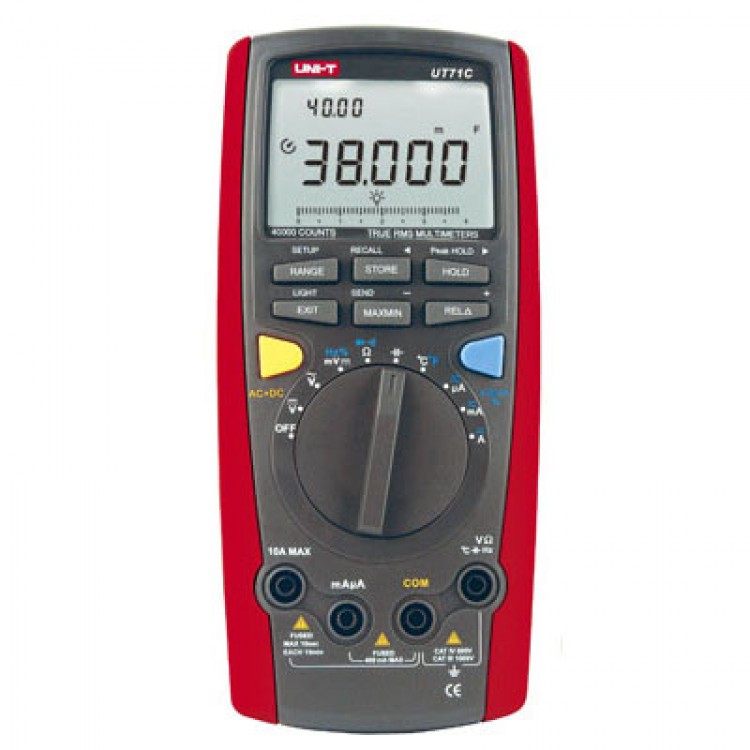

Uni-T UT71C Intelligent Digital Multimeters

Availability: In stock, usually dispatched in 1 business day

  • Price:$155.45
  • Price in reward points: 1555 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $152.34 $149.23 $144.57 $138.35 Contact US
Quantity:

SPECIFICATIONS

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/1000V (0.025%+5)
AC Voltage 4V/40V/400V/1000V (0.4%+30)
AC Bandwidth 100KHz
DC Current 400µA/4000µA/40A/400mA/10A (0.08%+15)
AC Current 400µA/4000µA/40A/400mA/10A (0.5%+15)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (0.3%+8)
Capacitance 40nF/400nF/4µF/40µF/400µF/4mF/40mF (1%+20)
Temperature (oC) -40oC ~ 1000oC (1%+30)
Temperature (oF) -40oF ~ 1832oF (1.5%+50)
Frequency 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz (0.01%+8)
Duty Cycle 10%~90% (1%+30)
4~20mA Loop 0~100%

(1%+50

Power Measurement
Special Functions
Fused 10A Range
Auto Ranging
Current Measurement Alarm
Function Set Up
Auto Ranging
Votage & Current :
AC + DC Measurement

Data Logging    100
Data Recall
Diode
Continuity Buzzer
True RMS
Peak Hold
Max/Min Mode
Relative Mode
Data Hold
USB
Double Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display

Input Impedance for
DC Voltage Measurement

DC 200mV : Around 2.5GW
All Other Ranges : 10MW
Max. Display 40000
Analogue Bar Graph


GENERAL CHARACTERISTICS

Power 9V Battery (6F22)
LCD Size 73 x 50 mm
Product Colour Red and Grey
Product Net Weight 384g
Product Size 200 x 93 x 40mm
Standard Accessories Test Lead, English Manual, Battery, Alligator Clip, USB Interface Cable,
Software, Point Contact Temperature, Probe, Carrying Bag, Test Clip
Standard Individual Packing Gift Box
Standard Quantity Per Carton 20 pcs
Standard Carton Measurement

542 x 376 x 388mm
(0.079 CBM Per Standard Carton)

Standard Carton Gross Weight 18kg
