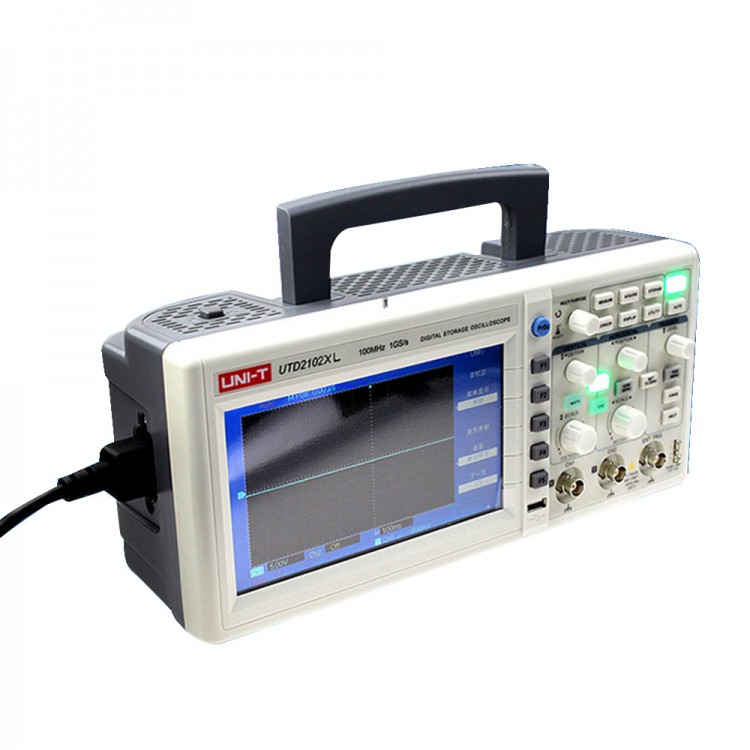

Uni-T UTD2102XL 1G Digital Storage Oscilloscope 110MHz Bandwidth 1G Sampling Rate
Features:
- Features 110MHz bandwidth, 1G sampling rate
- Special Functions 2-Channel
- Application Test frequency
- LCD Display 7inch 64K color TFT LCD
- Display Resolution 800 x 480
- Analog bandwidth 110MHz
- Max sample rate 1G
- Sample memory depth 25kpts
- Vertical sensitivity 1mV/div~20V/div
- Display Language Chinese, Traditional Chinese, Portuguese.
- 1mV / div ~ 20V / div span a wide range
- 7-inch widescreen display
- Support Plug and Play USB storage devices, and communication with the computer via USB and remote control
- Through the U disk can upgrade the system software
- Waveforms, setups and bitmap storage and reproducing waveforms and settings
- 32 kinds of automatic measurement of waveform parameters
- A unique waveform recording and playback
Specification:
- Channels: 2
- Bandwidth: 110MHz
- The maximum sampling rate : 1GS/s
- Rise time: ≤3.5ns
- Memory depth: 25kpts
- Waveform acquisition rate: ≥2000wfms/s
- Vertical sensitivity(V/div): 1mV/div~20V/div
- Time base range(s/div): 2ns/div~50s/div
- Storage: Settings, waveforms, bitmaps
- Trigger mode: Edge, Pulse, Video, Slope, Alternate
- Interface: USB OTG
- Power: 100-240VAC, 40-440Hz
- Display: 7 inches 64K colors TFT LCD ,800×480
- Body weight: 2.2 Kg
- Dimensions(W×H×D): 306mm ×147mm × 122mm
Package including:
- 1 x Digital storage oscilloscope
- 2 x Probes
- 1 x Power cable
- 1 x USB cable
- 1 x CD
