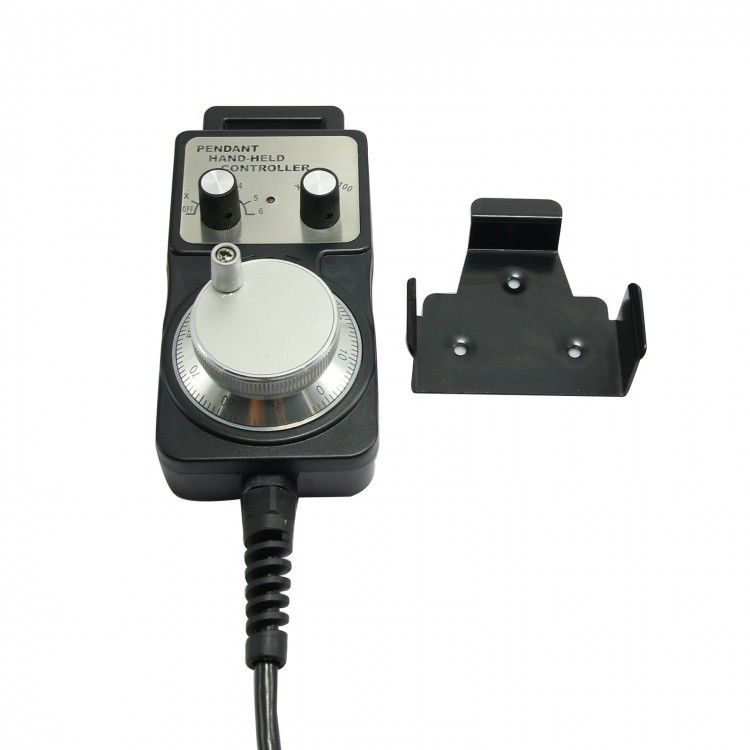

Universal CNC 6 Axis MPG Manual Pulse Generator Pendant Encoder for Siemens FAGOR
  • Universal CNC 6 Axis MPG Manual Pulse Generator Pendant Encoder for Siemens FAGOR
  • Universal CNC 6 Axis MPG Manual Pulse Generator Pendant Encoder for Siemens FAGOR
  • Universal CNC 6 Axis MPG Manual Pulse Generator Pendant Encoder for Siemens FAGOR
  • Universal CNC 6 Axis MPG Manual Pulse Generator Pendant Encoder for Siemens FAGOR

  • SKU:22061
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 10
  • Price:$98.36
  • Price in reward points: 984
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $96.39 $94.43 $91.47 $87.54 Contact US

Features :



Wire
Color
Function
1
Red
+5V MPG
2
Black
GND MPG
3
Yellow
A+ signal MPG
4
Light Yellow
A- signal MPG
5
White
B+ Signal MPG
6
Transparent
B- Signal MPG
7
Light red
LED +
8
Gray
LED -
9
Brown
X Axis select
10
Orange
Y Axis select
11
Light blue
Z Axis select
12
Blue
4 Axis select
13
Dark green
X 1 Select
14
Green
X10 Select
15
Light green
X100 Select
16
Purple
COM of scale select and Axis select
Shield

Shield wire

  • x1, x10, x100 switch
  • X,Y,Z,4th axis selector switch
  • LED indicator
  • High quality professional chassis
  • 6ft extendable high quality shielded cable cord
  • Magnetic base holder can place anywhere on the machine steel surface
  • Required 5V+, 150mA, power for MPG
  • Phase output is A ,/A and B,/B;
  • TTL output, drive capability +-20mA;

Support CNC system:

  • Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC,GSK,opened NC, KND,Siemens, the NUM, Spain FAGOR (NEW, 8055I) and so on.
Wiring:
  • User can wire this unit to the CNC system with easy.
