|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$103.78||$101.66||$98.49||$94.25||Contact US|

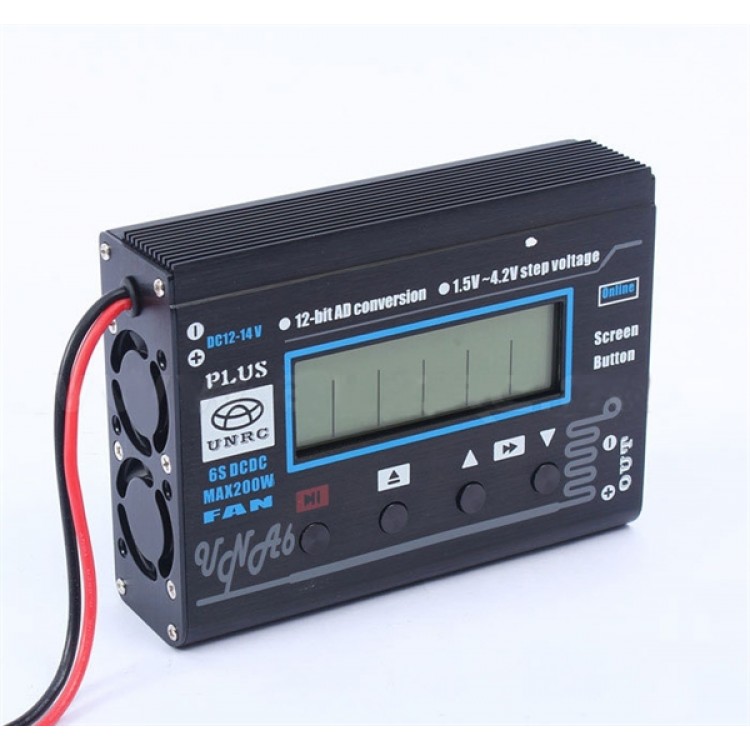

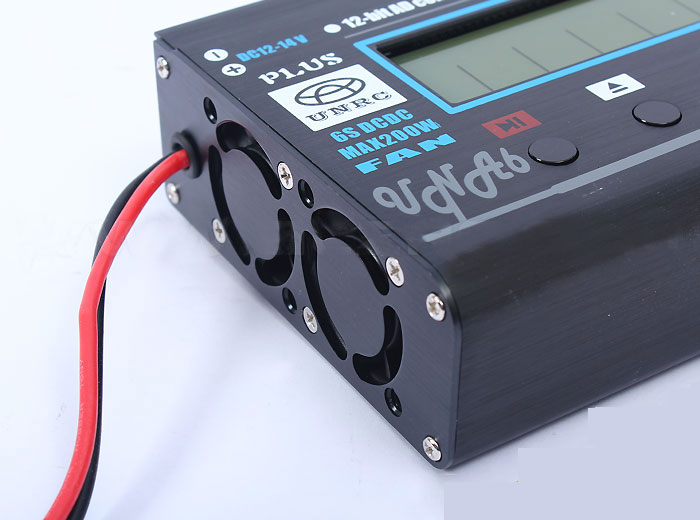

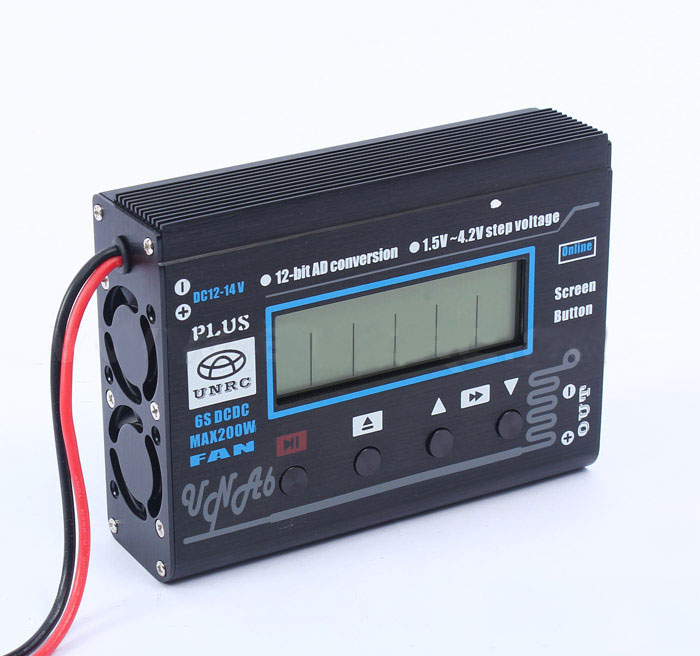

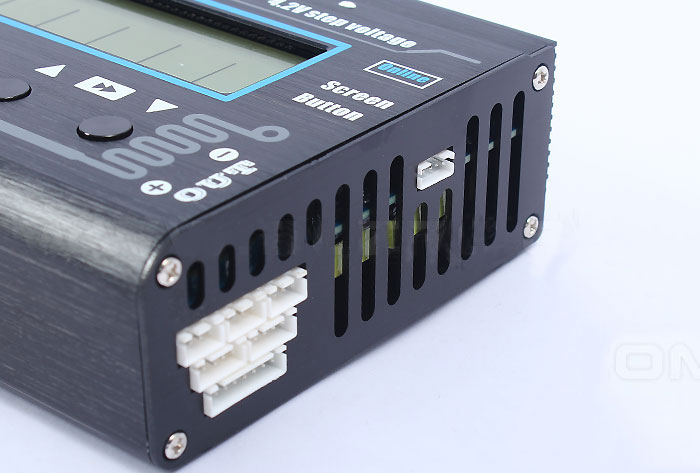

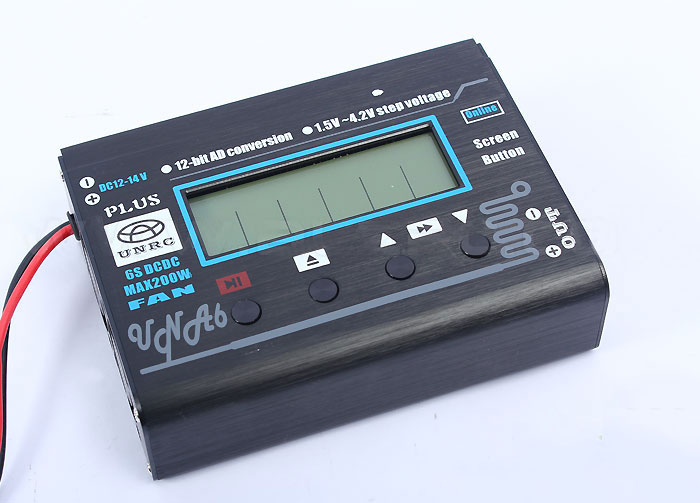

UNRC Second Generation UN-A6 PLUS Large current Charger
1.New housing and PCB wiring, bigger and more clear LCD screen, stronger convection thermal design. UN-A6PLUS new appearance.
2.Joined the input voltage display, the power supply voltage be clear at a glance.
3.Join dynamic balance function, can according to each battery core voltage trimming charging current, shorten charging time.
4.Using the high precision of the AD conversion circuit, voltage control accuracy of positive and negative 0.002 V, current.
5.The real six independent charging non-interference in each other, real-time display all of the battery voltage and the charging current, let you battery charging state be clear at a glance.
6.Join cascade function, can put two table A6 combination into 12 s charger and Shared an input power
7.A more comprehensive protection, input overvoltage and reverse joint protection, output reverse connection protection, output damage protection. When the CPU detection to a road voltage have arrived in the preset value, this road charging circuit will be lock make it stop work, let your battery not overcharge concerns.
8.Automatic temperature control thermal design, charger internal temperature is high, the automatic startup CPU cooling fan, and speed along with the change of the temperature automatic adjustment. If for some reason cooling bad more than the limit temperature, charger will stop charging (prevent device damage), after waiting for temperature dropped after automatic recovery charge.
9.The working voltage of battery charger input for dc 12 ~ 14 v, input voltage more than 15 v will enter the protection state, a interval 0.6 seconds alarm sound, and not to charge work.
10.Have 5 kinds of work mode (and imitation, artificial, automatic, discharge, cascade) function more strong.

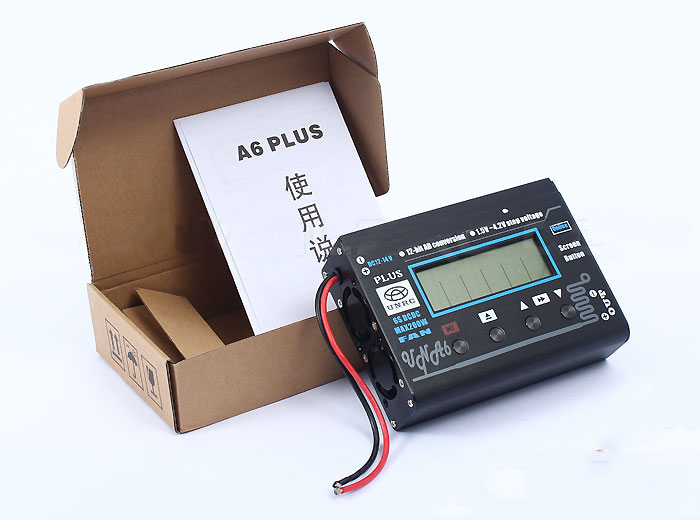

Charger x 1
