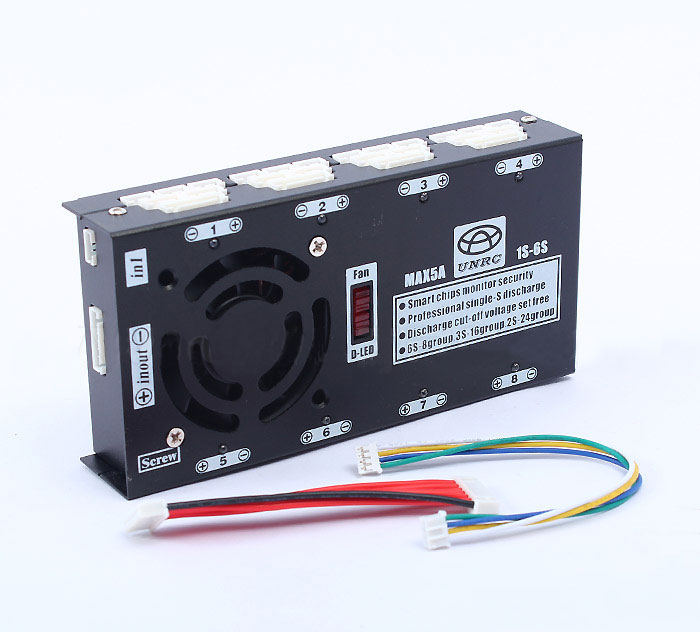

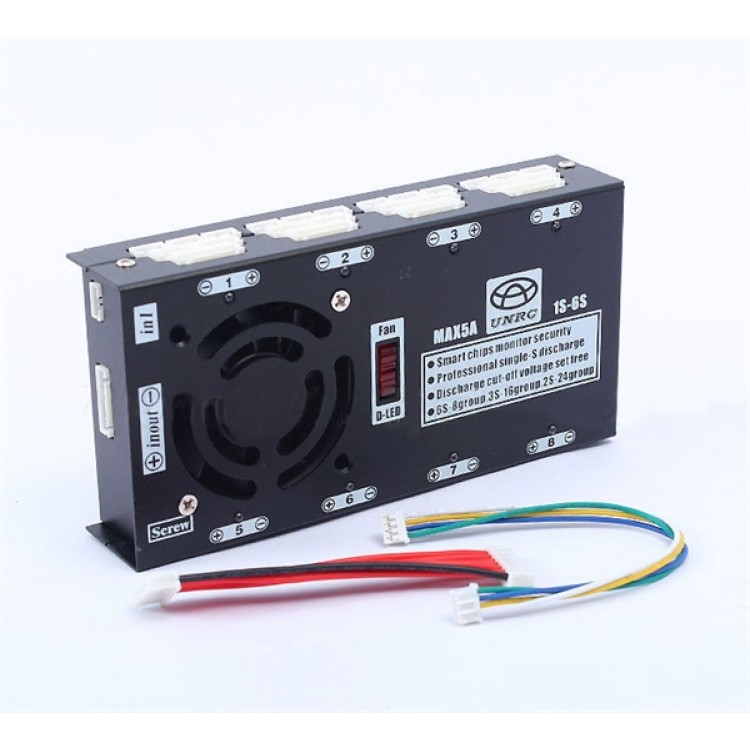

UNRC Second Generation UN-A6 PLUS Charging Nurse Set
- The latest edition of nurse removed in2 interface！
- The latest design array voltage driving circuit is very good replaced relay does not exist switch life.
- Lossless transmission design, using a low resistance of MOS tube sheet resistance only only six milliohm and reduce the transmission pressure drop can realize large current charging, nanny can directly tow 5 a above the charging current.
- Support multiple groups of battery, 2 s cell 24 groups, 3 s cell 16 group, 6 s cell 8 group. The new circuit and process greatly lodge small volume.
- Join professional discharge circuit can access all of the battery every S separate discharge, can put the voltage unbalance of the battery set level.
- Can be set by the discharge voltage (1.5 V to 4.2 V step 0.01 V), can be installed freely.
- Be clear at a glance of the work of the state, a panel switch group lamp, put circuit indication
- Safe and reliable design, internal anti joint protection, reverse connect the battery will not cause damage, joined the charger patrol function to UN charger for safety monitoring if found charger doesn't work properly 5 seconds cut off all battery, prevent accident.
- Reserve two kinds of data input interface, compatible UN - A6 new and old version of the solid, (discharge function must be new solid can drive up) no button design automatically detects data line input port.

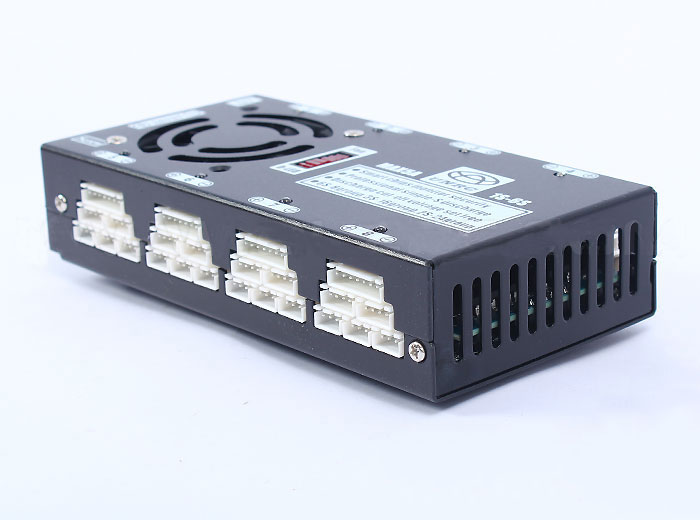

- Connection method, for the new version in1 A6 data interface, in2 for old version A6 data interface and can be compatible with other charge, inout and charger of charging outlet connections, 1 ~ 8 for battery interface.
- Charging mode, the data and charging outlet and charger link up, switch on the power, the UN - A6 charging mode set to 2 can drive nanny in infinite time of the battery scanning, when testing to conform to the requiremen
- Discharge model, the data and charging outlet and charger link up, switch on the power, the UN - A6 charging mode set to 3 can drive nanny in infinite time of the battery scanning, when testing to conform to the discharge requirements after the battery will stop scanning, and began to discharge, discharge current not adjustable (discharge current = single S battery core voltage / 3 ohm) are discharge way group corresponding top of the indicator light ChangLiang. And can see discharge light up, put electric lamp had six corresponding to each battery core S discharge state. If a complete discharge will jump to the next group, until access all batteries complete discharge.
- Protect start, if for some reason lead to charger doesn't work or work anomaly, data mouth sent the data error will occur, the babysitter will start time, if more than 5 seconds is still no correct data output nanny will cut off all of the battery to remove all of the discharge group to ensure safety.

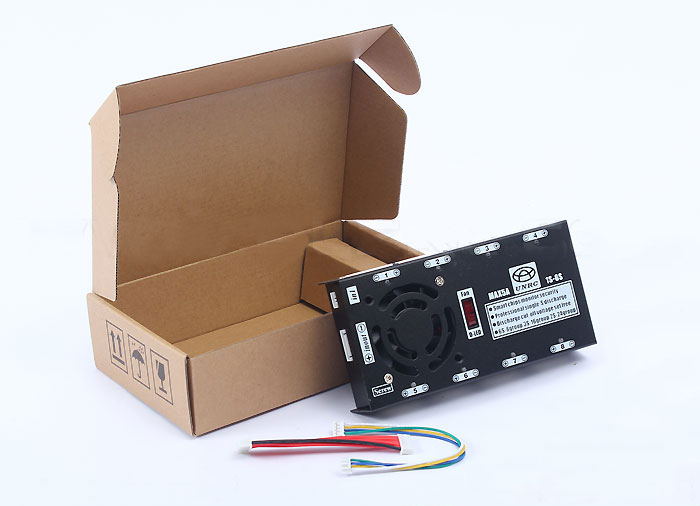

- Charging Nurse x 1
- Connect cable x 2
