Update ARM DSO201 PRO Nano V3 8M Memory Handheld Digital Metal Oscilloscope

Availability: In stock, usually dispatched in 1 business day

  • Price:$106.50
  • Price in reward points: 1065 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $104.37 $102.24 $99.05 $94.79 Contact US
Quantity:

Update ARM DSO201 PRO Nano V3 8M Memory Handheld Digital Metal Oscilloscope

Description

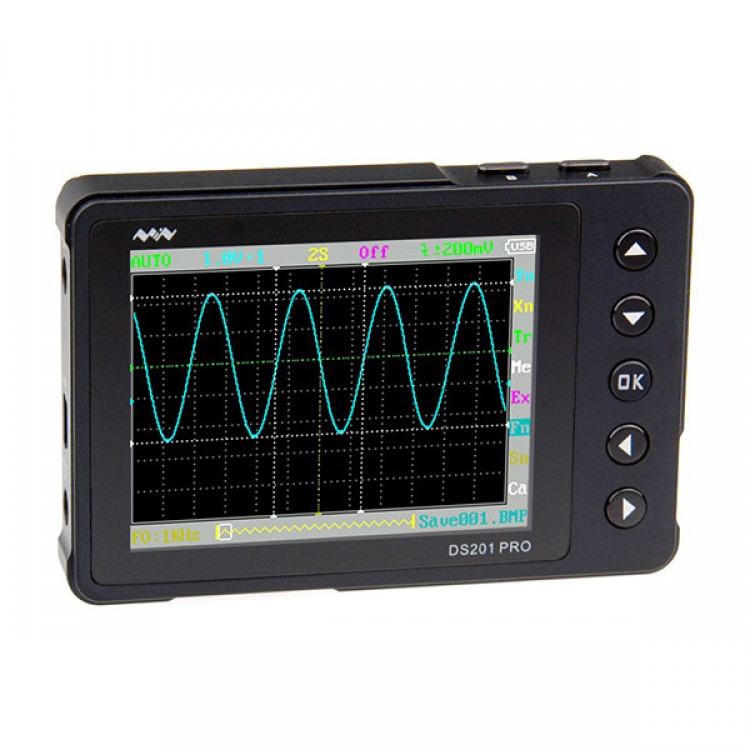

- DS201 pro is a 32bit digital storage oscilloscope. Based on ARM -M3, it’s equipped with 320*240 color display, SD card, USB port and recharging function. It’s compact, simple to operate; meets the basic demands of school lab, electric furniture repairmen and electric engineering. The DS201 pro differs from DS201 in that it does not use white plastic shell. Instead, it uses black metal shell which is more durable and strong. Built in 8M storage .

Features
- Portable and lightweight
- Color display
- Waveform storage and playback
- 6 triggering modes
- 200Khz Analog Bandwidth
- Complete measurement markers and signal characteristics
-Built-in Signal Generator
- Accessories available
- Open Source

Specifications
- Display: Full Color 2.8" TFT LCD 65K 320×240
- Analog bandwidth: 0 - 200KHz
- Max sample rate: 1Msps 12Bits
- Sample memory depth: 4096 Point
- Horizontal sensitivity: adjustable with indicator
- Vertical sensitivity: 10mV/Div~10V/Div (with ×1 probe)/ 0.5V/Div~100V/Div (with ×10 probe)
- Vertical position: adjustable with indicator
- Input impedance: >500KΩ
- Max input voltage: 80Vpp (by ×10 probe)
- Coupling: DCs
- Trig modes: Auto, Normal, Single, None, Scan and Fit; Rising/Falling edge/level trigger; Trig level adjustable with indicator; Trig sensitivity adjustable with indicator.
- Waveform Functions: Auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage; Precise vertical/horizontal measurement with markers; Hold/Run.
- Signal Generator: 10Hz~1MHz square wave
- Waveform storage: Micro SD card
- PC connection via USB: as SD card reader
- Upgrade: USB
- Power supply: 500mAh 3.7V Lithium battery/ USB
-Dimension (w/o probe) 91mm*62mm*13mm

Documents

    Manual (email to you)

pictures of  package:
1.  DS201 pro body ( battery built in ) * 1
2.  MCX probe (analog probe ) * 1
3.  USB cable * 1
4.  cloth bag * 1
