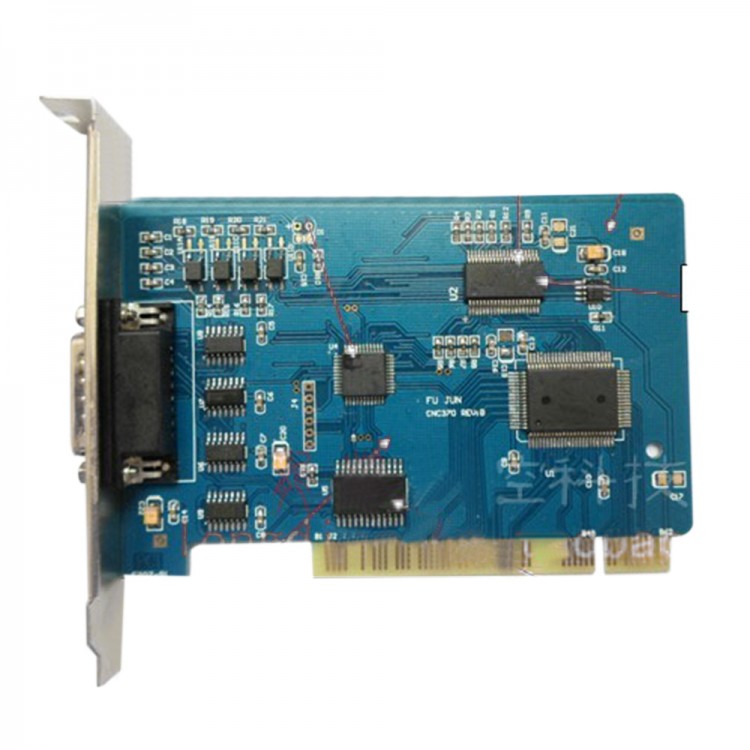

Upgraded 3-Axis CNC Router PCI NC Studio Card Controller Engraving Machine Control Board for DIY

Upgraded 3-Axis CNC Router PCI NC Studio Card Controller Engraving Machine Control Board for DIY

Description:
The control card is the upgraded version, compatible with the old version 3D card. It can be used directly. The new version adopts high precision components and fully automatic machine (SMT) production, electronic components without manual welding, to ensure the performance and reliability of the product.

This control card can control a variety of brand woodworking engraving machine, advertising engraving machine, stone engraving machine, cutting machine, such as tablet, quality and stability, can be directly read file format.NC, support the suspension of tool command.

The system can directly support MASTERCAM, CASMATE, Art, CAM UG, AUTOCAD, CorelDraw, TYPE3,, Wen Tai and other CAD/CAM software that generated G code.

The system can be used with a variety of three-dimensional engraving machine, three-dimensional engraving and milling machine.

Functions:
- Hardware features: XYZ three kinematic axis, three axis linkage or interpolation, two axes linkage or interpolation; XYZ axis limit function and the aligning function; spindle speed control.
- Software: automatic processing, manual function, incremental feed function, the user data input function (MDI), advanced processing instruction, single step mode, the breakpoint memory, jump section executive function, save / restore workpiece origin function, feed shaft precision to mechanical origin (reference point) function, automatic tool setting function, feed rate adjusted on-line, high-speed smooth speed connection characteristics, and 3D simulation display function, a simulation function, keyboard support, log function, a built-in processing file management, built-in file editing, file information processing, sudden power failure and continue processing function.

Package included:
- 1 x Engraving machine control card
