Upgraded 5 Axis CNC Breakout Board For Stepper Driver Controller mach3 Engraving Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$8.01
  • Price in reward points: 80 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $7.85 $7.69 $7.45 $7.13 Contact US
Quantity:

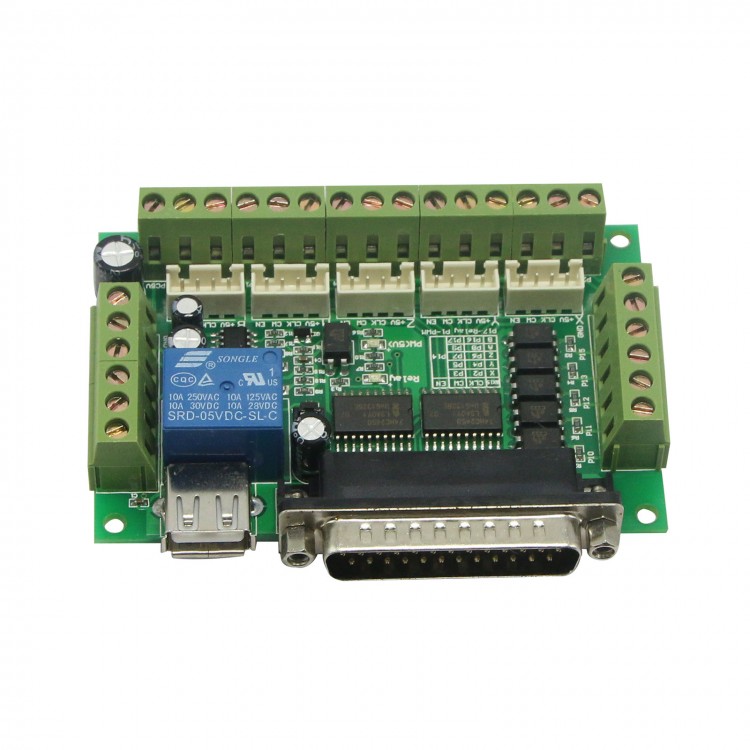

Upgraded 5 Axis CNC Breakout Board For Stepper Driver Controller mach3 Engraving Machine

Specification:
Condition: Brand New and High Quality
1. Completely support MACH3 and the other softs that use LPT port
2. USB power supply and external power supply separate,for protecting your PC
3.WIde range external power supply voltage,12-24v,and has preventing reverse connection
function
4.All the input signals are separated by photocouplers,cab be connected to Estop Probe and
limit switch.To make your computer safe.
5.One relay output,can be connected to spindle switch.
6,0-10v photocoupler separated analog voltage output,canbe connected to Frequency
converter,using to control the spindle speed.
7.All 17LPT ports are available,can be connected to stepping motor drivers,can control five
stepping motor.
8.P1 canbe used to output PWM signal,and control the spindle speed regulator that has a
photocoupler for input.
9.Can be connected to stepping motor drivers using common anode or common cathode input
connection.
10.All of the LPT port names are printed on board,easy to use.

 shipping weight 6oz (net:4.3oz)

manual:Click
Package list:
1X Upgraded 5 Axis CNC Breakout Board
1X usb cable
