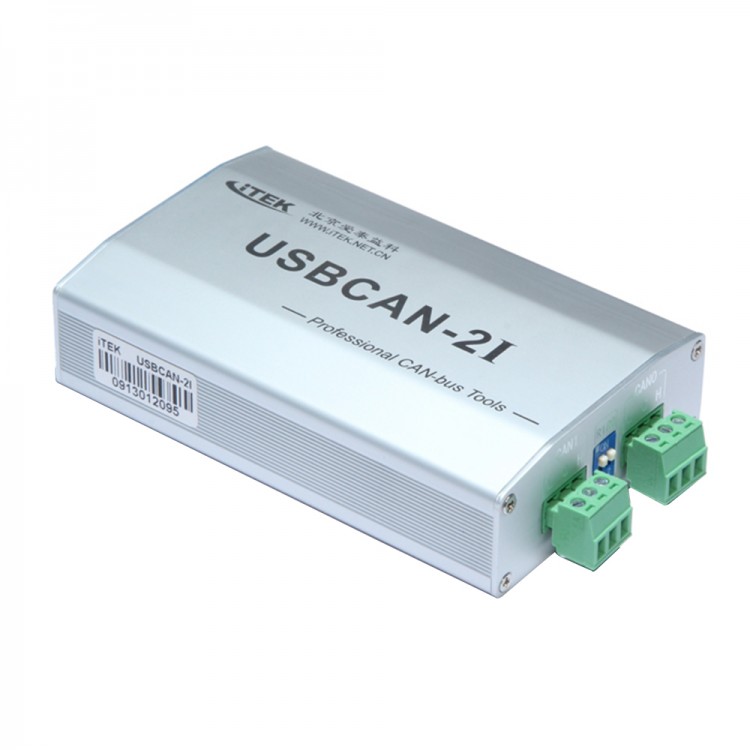

USBCAN-2I Dual Channel with Isolation Smart USB CAN Analyzer Professional CAN-BUS Tool
Description:
- Compatible with USBCAN-II/2A/II+
- Provide 2 channels of independent CAN
- USN interface is compatible with USB2.0 USB1.1 protocal
- In accordance with specifications of CAN 2.0A/B, ISO11898
- Support 5kbps-1Mbps baud rate setting
- Provide the second development routine like VC,VB,Delphi,C#,Labview and Linux
- Support WinXP, Win7/8/ Linux system
- CAN channel DC2500V electrical isolation, electrostatic contact discharge 8Kv
Specification:
- Operating temperature: -40~80 deg C
- Storage temperature: -55~85 deg C
Application:
- BMS
- New energy automobile diagnosis
- New energy automobile parts producing detection
- Transverse Machine Control System
- Automation control system
Function:
- Bus real time frame traffic and bus load rate statistics
- Alias settings
- Data monitor
- Task send
- Send files
- Files save
- Software filtering function
- Baud rate adaptive
Package included:
- 1 x USBCAN-2I
- 1 x CD
- 1 x USB cable
